Specifications |
| Manufacturer |
SCI |
| Type of switch |
ROCKER |
| Contacts configuration |
DPST |
| Number of positions |
2 |
| Switching method |
OFF-ON |
| AC contacts rating @R |
6A / 250V AC |
| Key button colour |
blue |
| Illumination |
neon lamp 250V |
| Max. contact resistance: |
50mΩ |
| Body colour |
black |
| Body material |
polyamide |
| Flammability rating |
UL94V-2 |
| Operating temperature |
-20...85°C |
| Leads |
4,8x0,8mm connectors |
| Panel thickness |
max. 3mm |
| Electrical life |
6000 cycles |
| Mounting hole diameter |
19.4x13mm |
| Button marking |
I-O |
| Backlight colour |
blue |
| Shape |
rectangular |
| Manufacturer series |
R13-73-AC |
| Stable positions number |
2 |

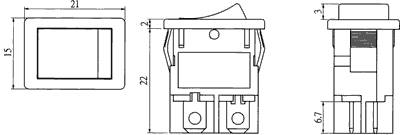

| Dimensions |
 VIEW |
| Gross weight |
4.575 g |
| |
|
