Διακόπτης - ROCKER, 2-position, SPST, ON-OFF, 16A/250VDC, black, Body black

Κωδικός: 19734

AE-H8800VAAAB PDF

AE-H8800VAAAB

Τιμή χωρίς ΦΠΑ:  1.12 €
Αξία ΦΠΑ:  0.27 €
Τελική με ΦΠΑ:  1.39 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer ARCOLECTRIC
Switch type ROCKER
Stable positions number 2-position
Contacts configuration SPST
Switching method ON-OFF
DC contacts rating 16 A / 250 VDC
Key button colour black
Body colour black
Operating temperature 25...60°C
Leads 4.8x0.8mm connectors
Mounting hole diameter 19.4 x 6.9mm
Number of positions 2
Button marking -O

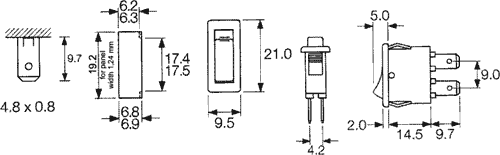

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
