Ελεγχος Θερμοκρασίας - Temperature controller 48x48 100-240VAC AT03 0-10V

Κωδικός: 452

AT503-1161000 PDF

AT503-1161000

Τιμή χωρίς ΦΠΑ:  93.47 €
Αξία ΦΠΑ:  22.43 €
Τελική με ΦΠΑ:  115.90 €
Ποσότητα:
Προειδοποίηση Μεγάλος χρόνος παράδοσης
Specifications
Manufacturer ANLY ELECTRONICS
Module type controller
Kind of temperature sensor JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T
Controlled parameter temperature
Supply voltage 90...260V AC
Output 1 type SPST-NO
Output 2 type 0...10V
Regulation for output 1 AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID
Mounting desktop
Operating temperature 10...50°C
Controlled parameter range 1999...9999, depends on temperature sensor
Output 1 electrical parameters 240VAC/3A
Type of display used 2x LED 4 digits
Body dimensions 48 x 48 x 83mm
The programming method foil keypad
Additional functions heating or cooling control, non-volatile EEPROM memory, scroll menu, LED status indicator
Mounting hole diameter 46 x 46mm
Sealing IP20
Display height 1 10mm
Display 2 height 7mm
Output 3 type SPST-NO
Output 3 electrical parameters 240VAC/3A

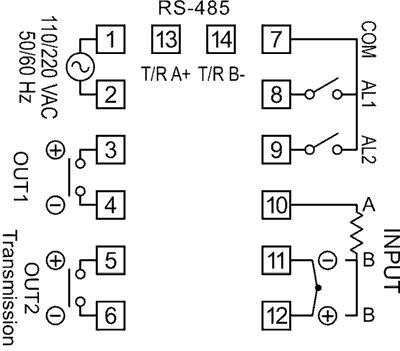

Output configuration  VIEW

Input 1 properties:
  • RTD
  • thermocouple
Διαθεσιμότητα: Με παραγγελία
