Module regulator, temperature, SPDT, OUT 2 SPDT, DIN, 250VAC/8A - 222.12 EUR : acdcshop.gr


Ελεγχος Θερμοκρασίας - Module regulator, temperature, SPDT, OUT 2 SPDT, DIN, 250VAC/8A	Κωδικός: 37301
PDF	K85P-LCRR

Κάντε Κλικ για Μεγέθυνση Module regulator, temperature, SPDT, OUT 2 SPDT, DIN, 250VAC/8A

Specifications
Manufacturer	ASCON TECNOLOGIC
Type of module	regulator
Kind of temperature sensor	Pt100, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T
Controlled parameter	temperature
Kind of output 1	SPDT
Kind of output 2	SPDT
Regulation for output 1	2PID, AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID, PROGRAM
Regulation for output 2	ON-OFF, ON-OFF with hysteresis
Mounting	DIN
Output 1 electrical parameters	250V AC / 8A
Output 2 electrical parameters	250V AC / 8A
Controlled parameter range	0...999,9°C
Operating temperature	-25...60°C
Supply voltage	24V AC, 24V DC
The programming method	keypad
Kind of display used	LED
Additional functions	PROGRAMMER

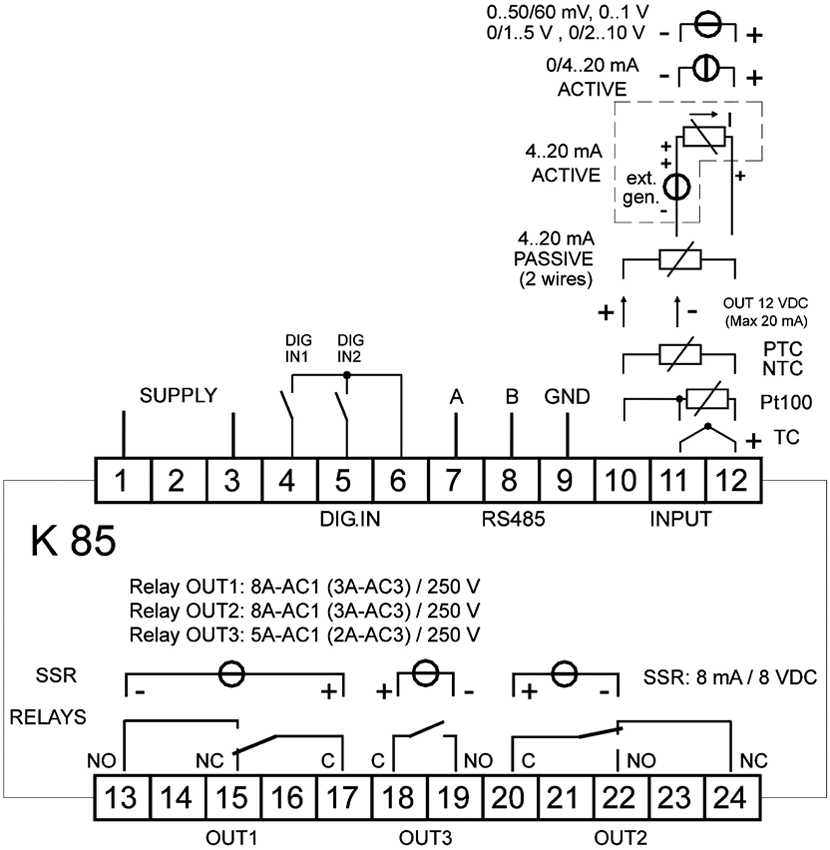

Output configuration	VIEW

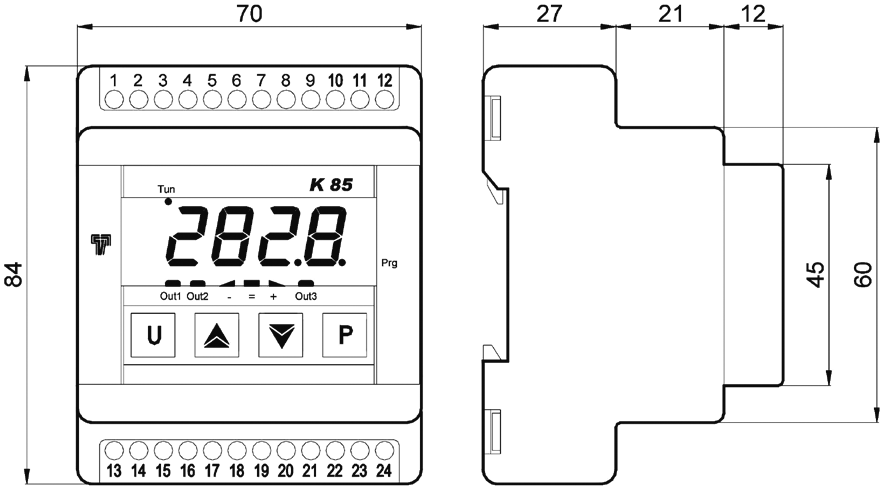

Dimensions	VIEW
Gross weight	202.4 g

Διαθεσιμότητα: Με παραγγελία
