| Specifications |
| Manufacturer | SCI |
| Type of switch | toggle |
| Number of positions | 2 |
| Stable positions number | 2 |
| Contacts configuration | SPST |
| Switching method | ON-OFF |
| DC contacts rating @R | 20A / 12V DC |
| Leads | connectors |
| Manufacturer series | R13-423 |
| Terminals plating | nickel |
| Operating temperature | -20...85°C |
| Kind of toggle | flat |
| Mounting hole diameter | Ø12mm |
| Knob height | 16mm |
| Max. contact resistance: | 50mΩ |
| Body dimensions | 28.6x16x17.4mm |
| Actuator material | plastic |
| Panel thickness | max. 4mm |
| Test voltage | 1.5kV |
| Lever colour | black |
| Illumination | LED |
| Backlight colour | red/green |
| Leads dimensions | 6.3x0.8mm |

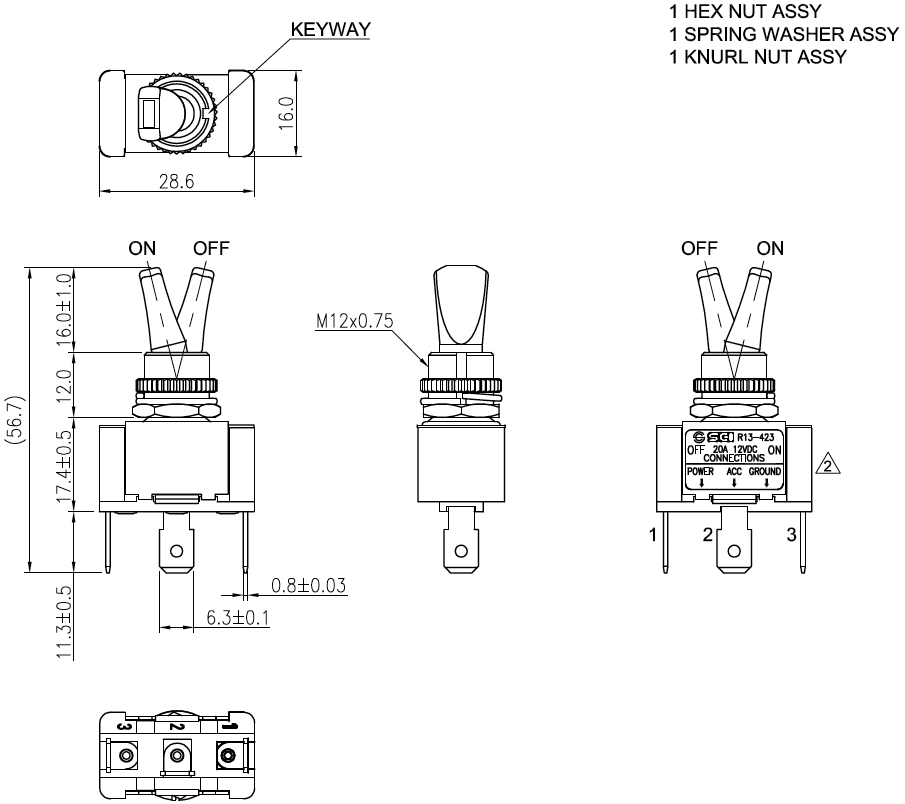

| Dimensions |  VIEW |

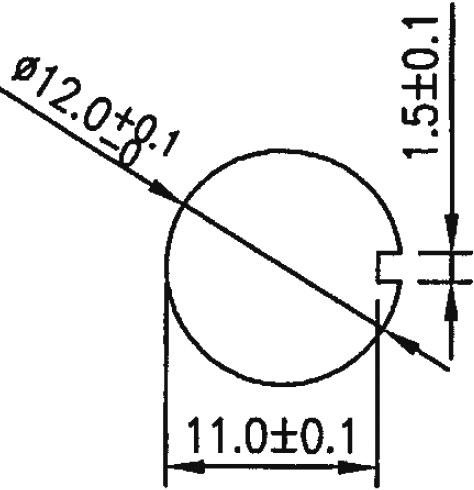

| Panel cutout | VIEW |
|
