| Specifications |
| Manufacturer | TE Connectivity |
| Type of relay | electromagnetic |
| Contacts configuration | DPST-NO |
| Rated coil voltage | 12V DC |
| Contact current max. | 30A |
| Relay variant | power |
| Manufacturer series | T92 |
| Operating temperature | -40...85°C |
| Mounting | PCB |
| Body dimensions | 52.32x34.54x30.73mm |
| AC contacts rating @R | 30A / 277V AC |
| Coil resistance | 86Ω |
| Contact material | AgCdO |
| Leads | for PCB |
| DC contacts rating @R | 20A / 28V DC |
| Coil power consumption | 1.7W |
| Mechanical durability | 5000000 cycles |
| Switched voltage | max. 28V DC, max. 600V AC |

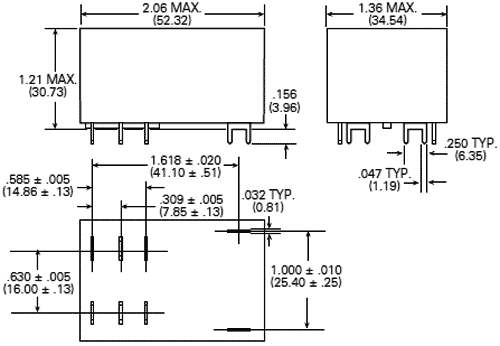

| Dimensions |  VIEW |

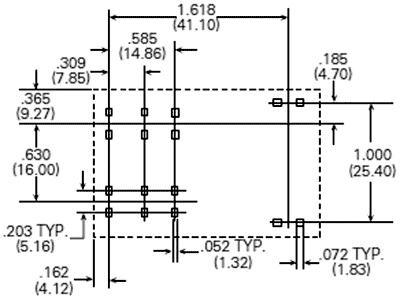

| Output configuration | VIEW |
|
