Specifications |
| Manufacturer |
OMRON OCB |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
5V DC |
| AC contacts rating @R |
16A / 250V AC |
| DC contacts rating @R |
16A / 30V DC |
| Contact current max. |
16A |
| Switched voltage |
max. 125V DC, max. 380V AC |
| Relay variant |
miniature, monostable |
| Mounting |
PCB |
| Coil resistance |
47Ω |
| Operate time |
15ms |
| Body dimensions |
29x13x25.5mm |
| Release time |
5ms |
| Operating temperature |
-40...70°C |
| Relay series |
G2R |
| Contact resistance |
30mΩ |
| Terminal pitch |
3.5mm |
| Coil current |
106mA |
| Related items |
PODST-3 |
| Enclosure description |
standard seal |
| Leads |
for PCB |

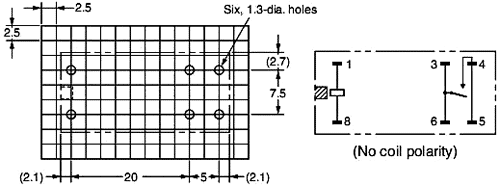

| Output configuration |
 VIEW |

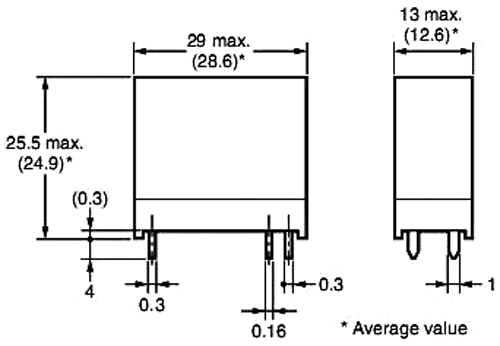

| Dimensions |
VIEW |
| Gross weight |
15.9 g |
| |
|
