Specifications |
| Manufacturer |
NINIGI |
| Type of connector |
PCB terminal block |
| Spatial orientation |
angled 90° |
| Contacts pitch |
3.5mm |
| Number of ways |
2 |
| Mechanical mounting |
on PCBs |
| Electrical mounting |
screw terminal, |
| Connector variant |
with wire protector |
| Connector |
terminal |
| Contact plating |
tinned |
| Current rating |
10A |
| Height |
8.4mm |
| Colour |
blue |
| Rated voltage |
300V |
| Body material |
polyamide |
| Stripped wire length |
5mm |
| Connectors features |
assembling possibility |
| Length |
7mm |
| Contact material |
brass |
| Operating temperature |
-40...105°C |
| Depth |
6.8mm |
| Flammability rating |
UL94V-0 |
| Type of pin configuration |
1x2 |
| Soldering temperature |
250°C / 5 s |
| Wire cross section |
0.5...1.5mm2 |

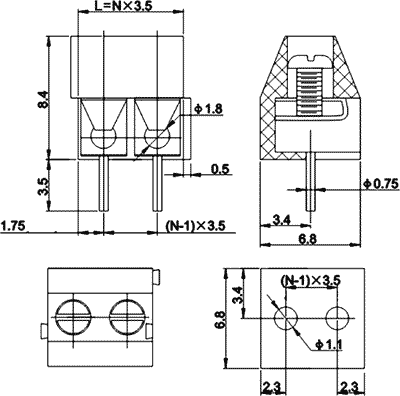

| Dimensions |
 VIEW |
| Gross weight |
0.836 g |
| |
|
