Connector D-sub - D-Sub, PIN 9, plug, female, for cable, screw terminal, 5A, 60V

Κωδικός: 37724
VS09BU-DSUB-MPT PDF

VS09BU-DSUB-MPT
Τιμή χωρίς ΦΠΑ:  19.11 €
Αξία ΦΠΑ:  4.59 €
Τελική με ΦΠΑ:  23.70 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer PHOENIX CONTACT
Type of connector D-Sub
Number of pins 9
Connector plug
Kind of connector female
Mechanical mounting for cable
Electrical mounting screw terminal
Contact material copper alloy
Connector series Variosub
Insulator material PBTP
Contact plating gold-plated
Maximum current 5A
Max. operating voltage 60V
Operating temperature -20...70°C
Wire cross section 0.14...0.5mm2

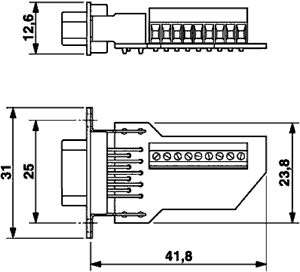

Dimensions  VIEW
Gross weight 11.15 g

Διαθεσιμότητα: Με παραγγελία
