Specifications |
| Manufacturer |
SCHURTER |
| Connector type |
AC supply |
| Standard |
IEC 60320 |
| Connector series |
FKH |
| Connector |
socket |
| Connector type |
male |
| Electrical mounting |
6.3mm connectors |
| Mechanical mounting |
flange (2 holes), for panel mounting |
| Rated current |
6A |
| Rated voltage |
250V AC |
| Contacts configuration |
DPST |
| Inductance |
0.8mH |
| Capacitance Cx |
68nF |
| Capacitance Cy |
2.2nF |
| Resistance |
1MΩ |
| Enclosure material |
nickel plated steel |

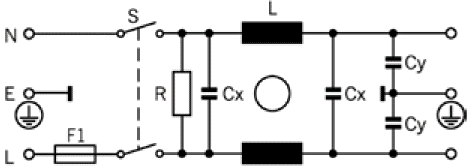

| Schematic diagram |
 VIEW |
| |
Connector variant:
- C14 (E)
- shielded
- 1x fuse
- with filter
- with on/off switch
|
|
