Terminal Blocks - Terminal block, 7.5mm, angled 90°, ways 2, 17.5A, H 15.2mm, green

Κωδικός: 19905

TB-7.5-AMP-2P PDF

TB-7.5-AMP-2P

Τιμή χωρίς ΦΠΑ:  0.79 €
Αξία ΦΠΑ:  0.19 €
Τελική με ΦΠΑ:  0.97 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer TE Connectivity
Connector type terminal block
Contacts pitch 7.5mm
Spatial orientation angled 90°
Number of ways 2
Rated current 17.5A
Height 15.2mm
Wire size 12...30AWG
Colour green
Rated voltage 300V
Body material polyamide
Electrical mounting THT, screw terminal
Connectors features assembling possibility
Length 15mm
Operating temperature 40...105°C
Depth 9mm
Flammability rating UL94V-0

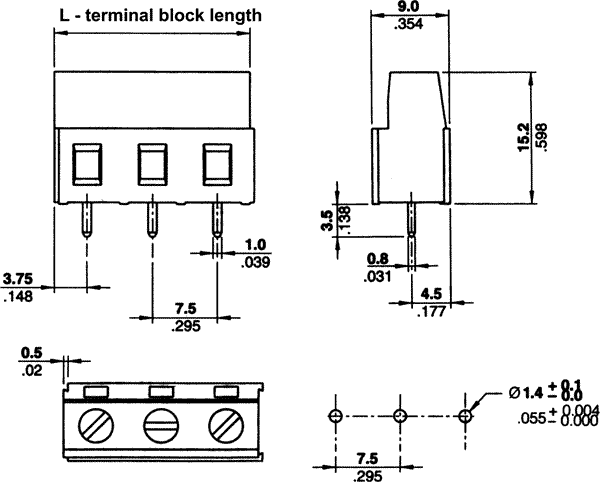

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
