Terminal Blocks - Pluggable terminal block, Contacts ph 5.08mm, ways 2, socket

Κωδικός: 36970

TBG-5-KW-2P PDF

TBG-5-KW-2P

Τιμή χωρίς ΦΠΑ:  0.55 €
Αξία ΦΠΑ:  0.13 €
Τελική με ΦΠΑ:  0.68 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer TE Connectivity
Type of connector pluggable terminal block
Contacts pitch 5.08mm
Number of ways 2
Spatial orientation angled 90°
Connector socket
Kind of connector male
Mechanical mounting on PCBs
Electrical mounting THT
Colour green
Rated voltage 300V
Current rating 15A
Type of pin configuration 1x2
Locking system latch
Body material polyamide
Flammability rating UL94V-0
Conform to the norm UL
Contact plating tinned
Operating temperature -40...105°C
Contact material copper alloy
Number of pins 2
Height 8.35mm
Depth 12mm
Length 11.98mm

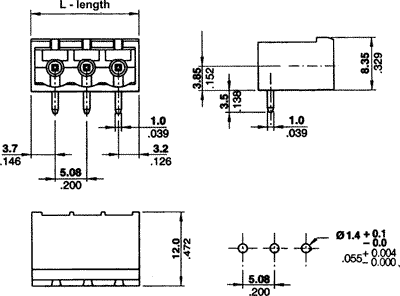

Dimensions  VIEW
Gross weight 0.8 g

Διαθεσιμότητα: Αμεσα
