Timer, 0,05s....300h, DPDT, 250VAC/5A, Usup 24....48VAC, 12....48VDC, IP4 - 103.60 EUR : acdcshop.gr


Χρονικά - Timer, 0,05s....300h, DPDT, 250VAC/5A, Usup 24....48VAC, 12....48VDC, IP4	Κωδικός: 38307
PDF	H3CR-A24AC/DC

Κάντε Κλικ για Μεγέθυνση Timer, 0,05s....300h, DPDT, 250VAC/5A, Usup 24....48VAC, 12....48VDC, IP4

Τιμή χωρίς ΦΠΑ:	103.60 €
Αξία ΦΠΑ:	24.86 €
Τελική με ΦΠΑ:	128.46 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	OMRON
Type of module	timer
Counting range	0,05s...300h
Kind of output	DPDT
Output 1 electrical parameters	250V AC / 5A
Supply voltage	12...48V DC, 24...48V AC
number of operation modes	6
Counter operation modes	delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S
Electrical connection	round socket
Kind of connector	undecal
Mounting	DIN, on panel, socket
Operating temperature	-10...55°C
Body dimensions	48x48x81.6mm
Number of pins	11
IP rating	IP40
Mounting hole diameter	45x45mm
The additional control inputs	gate, RESET, START

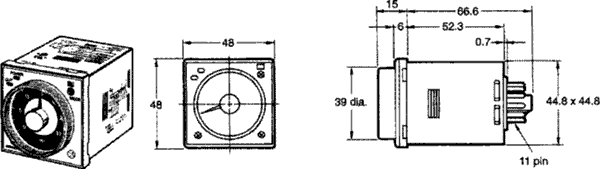

Dimensions	VIEW

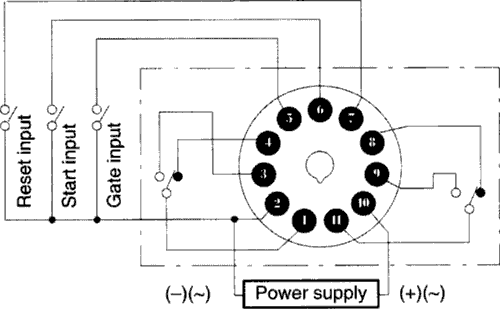

Output configuration	VIEW
Gross weight	125 g

Διαθεσιμότητα: Με παραγγελία
