Timer, 0,05s....300h, DPDT, 250VAC/5A, 100....240VAC, 100....125VDC, PIN 1 - 100.85 EUR : acdcshop.gr


Χρονικά - Timer, 0,05s....300h, DPDT, 250VAC/5A, 100....240VAC, 100....125VDC, PIN 1	Κωδικός: 17090
PDF	H3CR-A100-240AC

Κάντε Κλικ για Μεγέθυνση Timer, 0,05s....300h, DPDT, 250VAC/5A, 100....240VAC, 100....125VDC, PIN 1

Τιμή χωρίς ΦΠΑ:	100.85 €
Αξία ΦΠΑ:	24.20 €
Τελική με ΦΠΑ:	125.05 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	OMRON
Module type	timer
Counting range	0,05s...300h
Output type	DPDT
Output 1 electrical parameters	250VAC/5A
Supply voltage	100...240V AC, 100...125V DC
number of operation modes	6
Counter operation modes	delayed switching off, delayed switching on, ON and OFF delay, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, ON for the set interval, with the control contact S
Electrical connection	round socket
Connector type	undecal
Mounting	DIN, socket, on panel
Operating temperature	10...55°C
Body dimensions	48 x 48 x 81.6mm
Number of pins	11
Sealing	IP40
The additional control inputs	RESET, START, gate
Mounting hole diameter	45 x 45mm

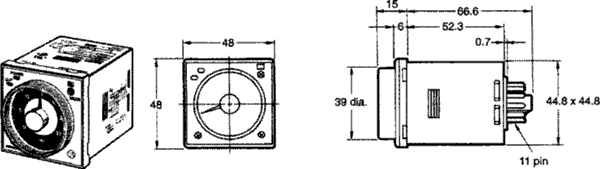

Dimensions	VIEW

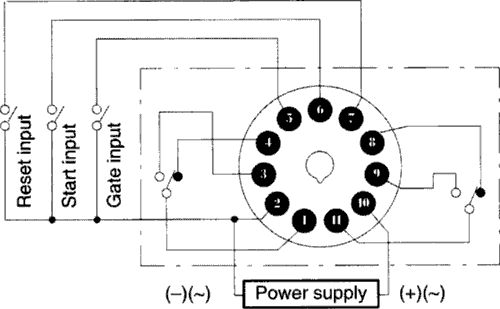

Output configuration	VIEW

Διαθεσιμότητα: Με παραγγελία
