Αισθητήριο Στάθμης - Sensor liquid level, -20....90°C, Output conf SPST-NO, lead 0,5m

Κωδικός: 37734

LS03-1A66-PP-500W PDF

LS03-1A66-PP-500W

Τιμή χωρίς ΦΠΑ:  7.70 €
Αξία ΦΠΑ:  1.85 €
Τελική με ΦΠΑ:  9.54 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer MEDER
Type of sensor liquid level
Operating temperature -20...90°C
Output configuration SPST-NO
Connection lead 0,5m
Sensors features sensor for horizontal mounting
Max. operating current 0.5A
Switching capacity 10W
Application dilute acids,   water
Body material polypropylene
Max. operating voltage 200V AC,   200V DC

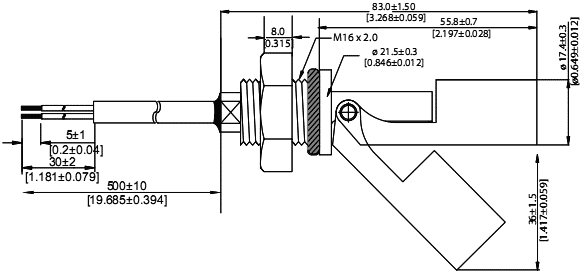

Dimensions  VIEW
Gross weight 22.4 g

Διαθεσιμότητα: Αμεσα
