Specifications |
| Manufacturer |
HONGFA RELAY |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
12V DC |
| AC contacts rating @R |
10A / 250V AC |
| DC contacts rating @R |
10A / 28V DC |
| Contact current max. |
15A |
| Switched voltage |
max. 30V DC, max. 277V AC |
| Relay variant |
subminiature |
| Mounting |
PCB |
| Coil resistance |
400Ω |
| Coil voltage min. |
9V DC |
| Coil voltage max. |
15.6V DC |
| Operate time |
10ms |
| Body dimensions |
19x15.5x15.2mm |
| Release time |
5ms |
| Coil power consumption |
360mW |
| Operating temperature |
-40...105°C |
| Contact resistance |
100mΩ |
| Contact material |
AgSnO2 |

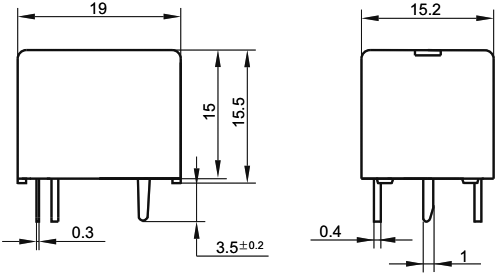

| Dimensions |
 VIEW |

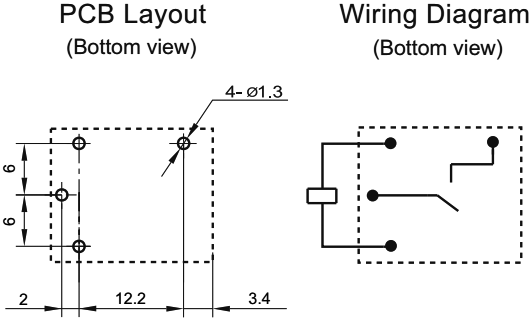

| Output configuration |
VIEW |
| Gross weight |
8.1 g |
| |
|
