Specifications |
| Manufacturer |
RELPOL |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
12V DC |
| Contact current max. |
30A |
| Relay series |
R30N |
| Relay variant |
power |
| Operating temperature |
-55...100°C |
| Mounting |
PCB |
| Coil resistance |
160Ω |
| Body dimensions |
32.5x27.6x20.5mm |
| Switched voltage |
max. 110V DC, max. 300V AC |
| Coil power consumption |
0.9W |
| AC contacts rating @R |
30A / 240V AC |
| Contact resistance |
30mΩ |
| DC contacts rating @R |
30A / 14V DC |
| Operate time |
15ms |
| Release time |
10ms |
| Contact material |
AgSnO2 |
| Mechanical durability |
100000000 cycles |
| Electrical life |
1000000 cycles |
| IP rating |
IP64 |
| OEM number |
2614763 |

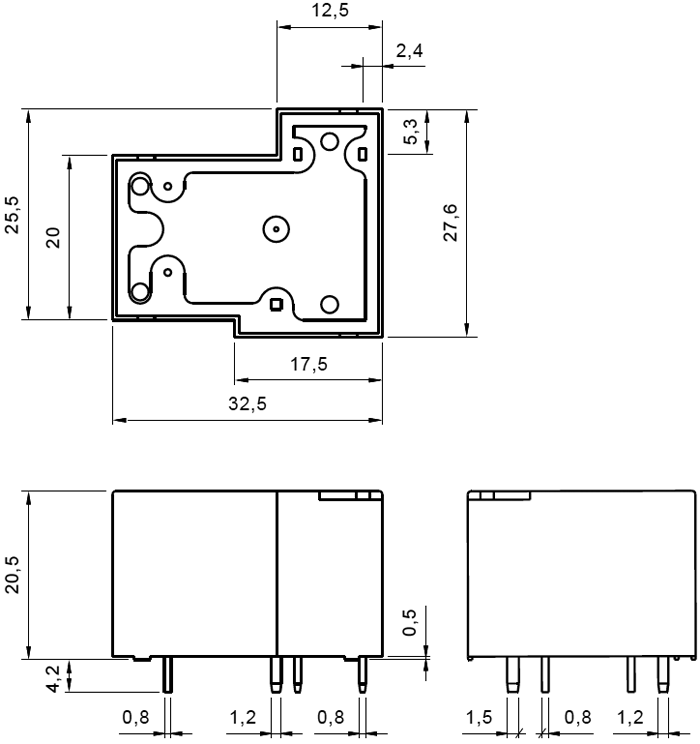

| Dimensions |
 VIEW |

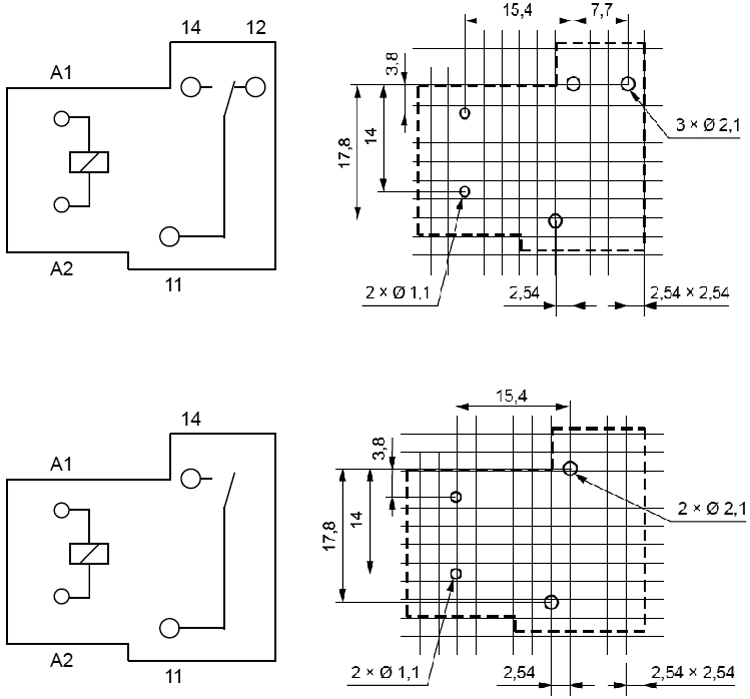

| Leads |
VIEW |
| Gross weight |
25.83 g |
| |
|
