Relays PCB - Relay electromagnetic, SPDT, Ucoil 48VDC, 6A/250VAC, 6A/30VDC, 6A

Prod code: 36951
HF41F/048-ZS PDF

HF41F/048-ZS
Price:  2.54 €
VAT:  0.61 €
Final price with tax:  3.15 €
Amount:
Warning Long delivery time
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 48V DC
AC contacts rating @R 6A / 250V AC
DC contacts rating @R 6A / 30V DC
Contact current max. 6A
Switched voltage max. 125V DC,   max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 10.6kΩ
Coil voltage min. 36V DC
Coil voltage max. 72V DC
Operate time 8ms
Body dimensions 28x5x15mm
Release time 4ms
Coil power consumption 210mW
Operating temperature -40...85°C
Relay series HF41F
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 5.04mm

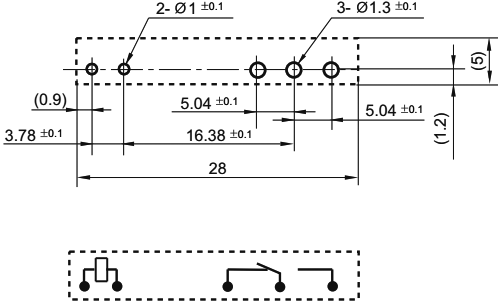

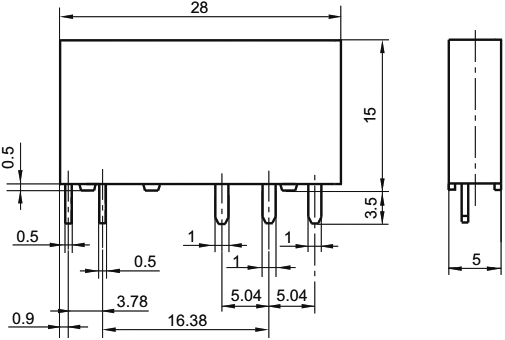

Dimensions  VIEW
Output configuration  VIEW
Gross weight 5.045 g

Availability: With order
