Relays PCB - Reed relay SPST-NO,1,25A 12VDCDiode, PCB mounting

Prod code: 1544
DIP12-1A72-12A PDF

DIP12-1A72-12A
Price:  2.54 €
VAT:  0.61 €
Final price with tax:  3.16 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEDER
Relay type reed
Contacts configuration SPST-NO
Rated coil voltage 12V DC
Contact current max. 1A
Switched voltage max 200V DC, max 200V AC
Coil resistance 1kÙ
Coil power consumption 145mW
Mounting PCB
Case DIP14
Contact resistance 150mÙ
Coil voltage min. 8.4V DC
Coil voltage max. 16V DC
Operating temperature 20...70°C
Soldering temperature 260°C
Body dimensions 13.5 x 7 x 5.7mm
Relay series DIP
Terminal pitch 2.54mm
Dimensions  VIEW

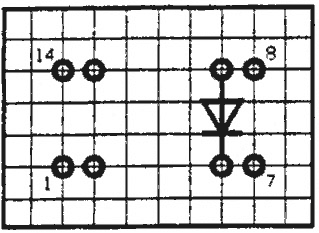

Schematic diagram  VIEW
Output configuration  VIEW

Availability: With order
