Specifications |
| Manufacturer |
MEDER |
| Type of relay |
reed |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
12V DC |
| Contact current max. |
1.25A |
| Switched voltage |
max. 200V AC, |
| Coil resistance |
1kΩ |
| Coil power consumption |
145mW |
| Mounting |
PCB |
| Case |
SIL |
| Contact resistance |
150mΩ |
| Coil voltage min. |
8.4V DC |
| Coil voltage max. |
33V DC |
| Operating temperature |
-20...70°C |
| Relay features |
protection diode |
| Body dimensions |
19.2x5.08x7.62mm |
| Relay series |
SIL |
| Terminal pitch |
5.08mm |
| Dimensions |
 VIEW |

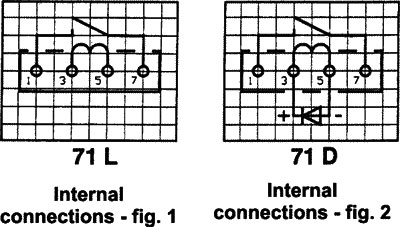

| Schematic diagram |
VIEW |
| Gross weight |
1.567 g |
| |
|
