Relays PCB - Relay electromagnetic, SPDT, Ucoil 24VDC, Icontacts max 40A

Prod code: 26261
V23076A1022C133 PDF

V23076A1022C133
Price:  4.87 €
VAT:  1.17 €
Final price with tax:  6.04 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
Contact current max. 40A
Switched voltage max 165V DC
Relay variant automotive
Mounting THT
Coil resistance 362Ω
Coil voltage min. 14.1V DC
Body dimensions 26.1 x 21.2 x 21.1mm
Coil power consumption 1.6W
Mechanical durability 10000000cycles
Operating temperature 40...85°C
Weight 22g
Relay series K
Contact material AgNi
Coil current 6.66mA
Height 21.2mm

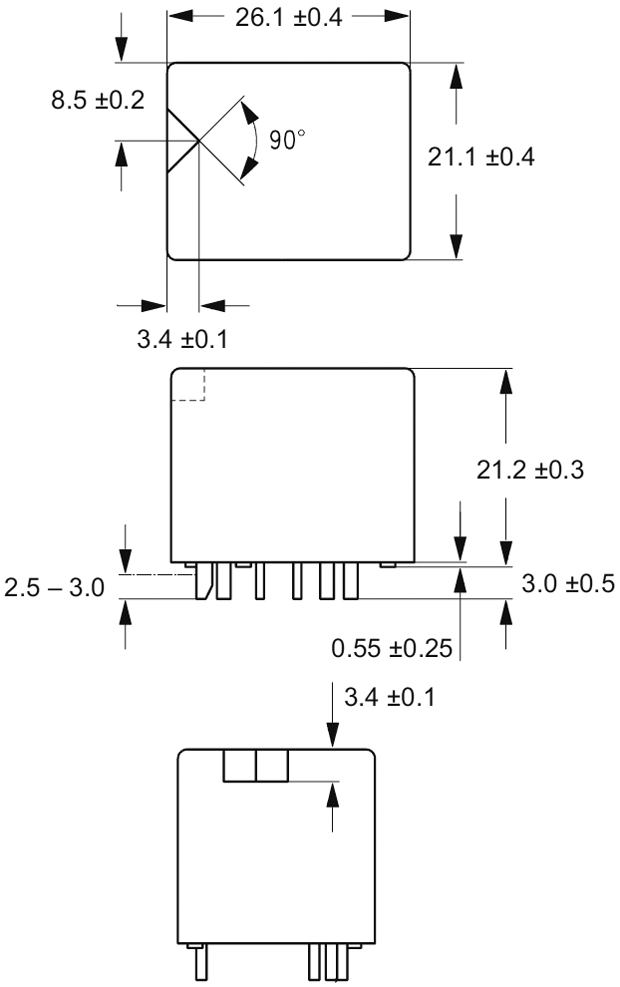

Dimensions  VIEW

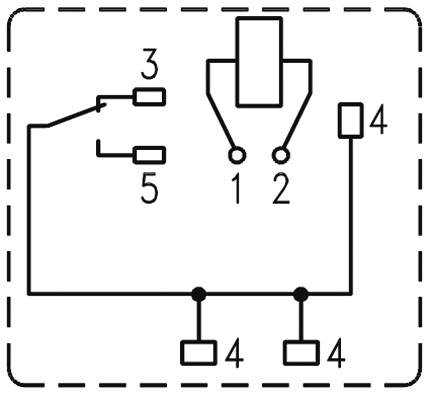

Output configuration  VIEW

Availability: On stock
