Relays PCB - Relay electromagnetic, SPDT, Ucoil 5VDC, 5A/250VAC, 5A/30VDC

Prod code: 35707
PE014005 PDF

PE014005
Price:  2.79 €
VAT:  0.67 €
Final price with tax:  3.46 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 5V DC
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 30V DC
Contact current max. 5A
Switched voltage max. 300V DC,   max. 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 125Ω
Operate time 5ms
Body dimensions 20x10x10mm
Release time 2ms
Coil power consumption 200mW
Mechanical durability 150000000 cycles
Operating temperature -40...85°C
Weight 5g
Relay series PE
Contact material AgNi 90/10
Terminal pitch 7.62mm
Coil current 40mA

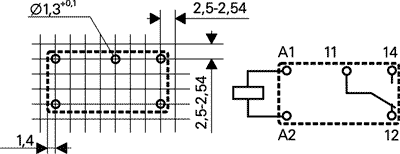

Output configuration  VIEW
Dimensions  VIEW
Gross weight 5.32 g

Availability: On stock
