Relays PCB - Relay electromagnetic SPST NO Ucoil 9V DC 8A/250VAC 8A/24VDC

Prod code: 13587
RM96-Z-9V PDF

RM96-Z-9V
Price:  2.34 €
VAT:  0.56 €
Final price with tax:  2.90 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 9V DC
AC contacts rating 8 A / 250 VAC
DC contacts rating 8 A / 24 VDC
Contact current max. 8A
Switched voltage max 440V AC, max 120V DC
Relay variant miniature
Mounting PCB
Coil resistance 360Ù
Coil voltage min. 6.3V DC
Coil voltage max. 22V DC
Operate time 10ms
Body dimensions 28 x 10 x 16.2mm
Release time 5ms
Coil power consumption 300mW
Sealing IP67
Operating temperature 40...80°C
Weight 11g
Relay series RM96
Contact resistance 100mÙ
Contact material AgCdO
Terminal pitch 5mm

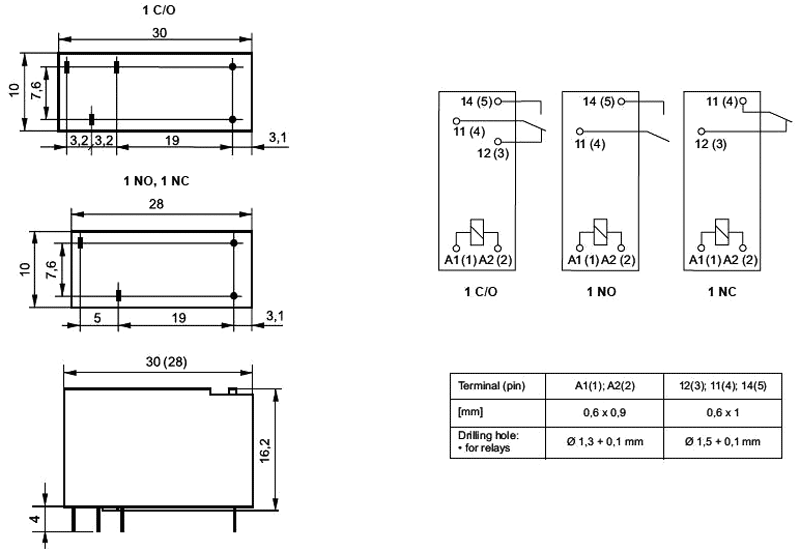

Dimensions  VIEW

Availability: On stock
