Relays - Relay electromagnetic, SPDT, Ucoil 12VDC, 40A, automotive, 103Ù

Prod code: 37082

CB1FM-12V PDF

CB1FM-12V

Price:  5.07 €
VAT:  1.22 €
Final price with tax:  6.29 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer PANASONIC
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
Contact current max. 40A
Relay variant automotive
Coil voltage min. 9V DC
Coil resistance 103Ω
Operating temperature -40...85°C

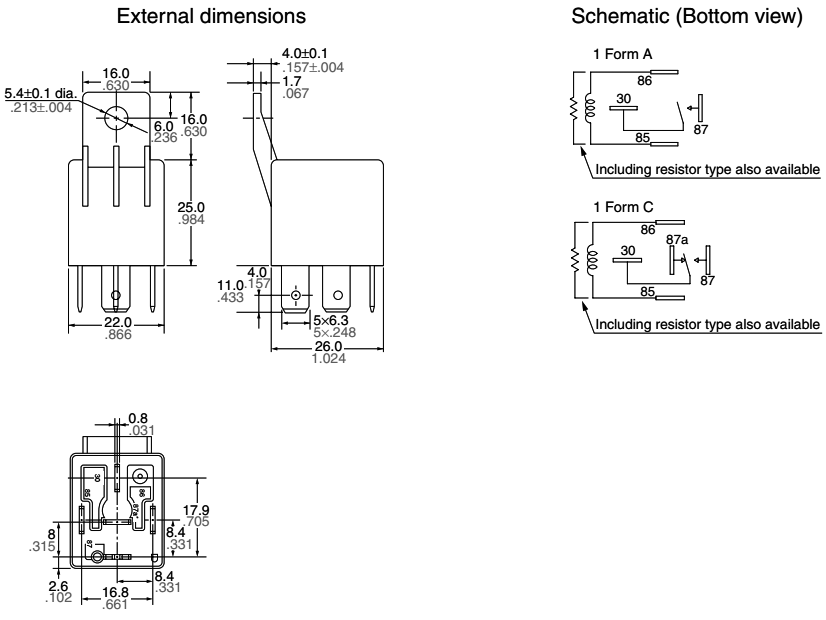

Body dimensions 26x22x41mm
Mounting socket
Coil power consumption 1400mW
Relay series CB
Mechanical durability 1000000 cycles
Coil current 117mA
Leads  VIEW
Gross weight 32.44 g

Availability: On stock
