Relays - Relay interface, SPDT, Ucoil 230VAC,230VDC, 6A
Prod code:
42702
PDF
PDF
TRS-230VUC-1CO
Click to enlarge
Price:
15.06 €
VAT:
3.61 €
Final price with tax:
18.67 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
WEIDMΓLLER
Type of relay
interface
Contacts configuration
SPDT
Max. operating current
6A
Mounting
for DIN rail mounting
Leads
screw terminals
Relay variant
Relay set
Operating temperature
-40...60°C
Body dimensions
6.4x90x88mm
Rated coil voltage
230V AC, 230V DC
Switched voltage
max. 250V AC, max. 250V DC

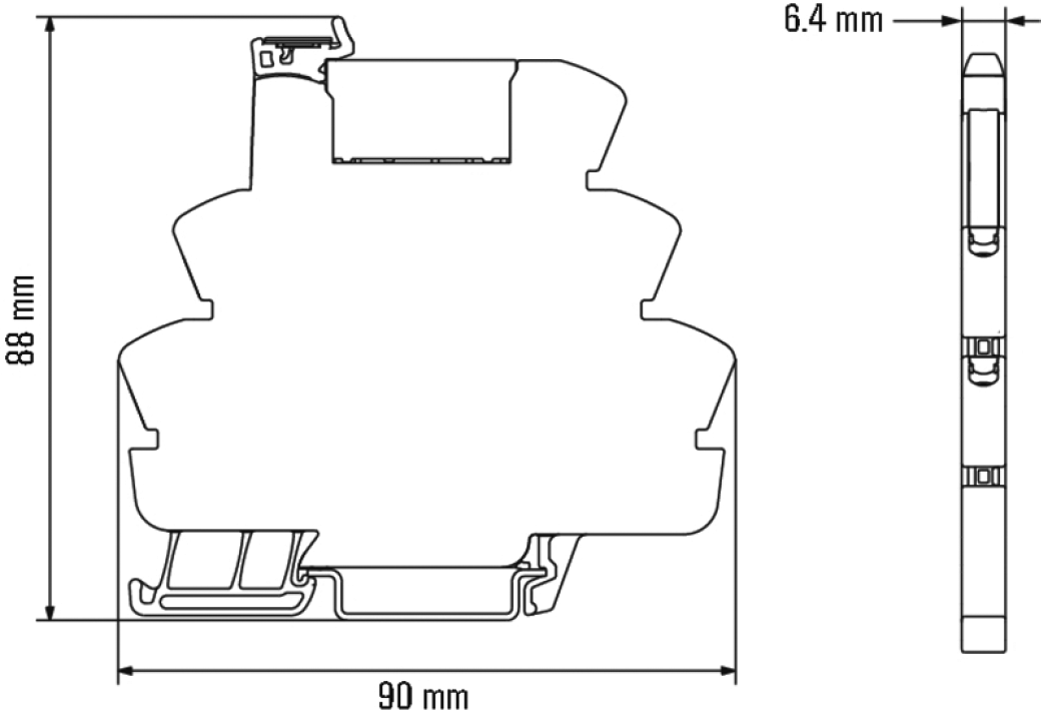

Dimensions
VIEW

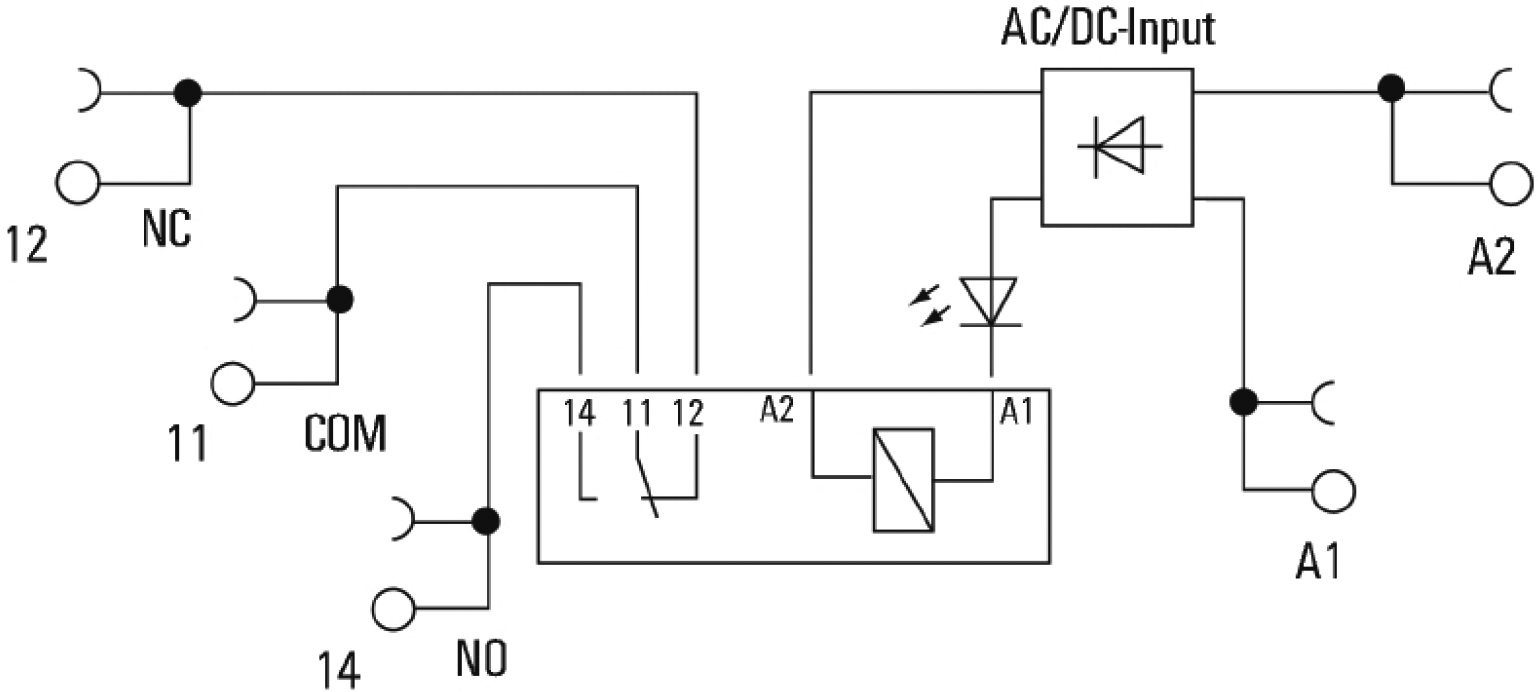

Output configuration
VIEW
Availability:
On stock
