Relays PCB - Relay electromagnetic, Ucoil 12VDC, SPST-NO, 20A, 16A/250VAC
Prod code:
43650
PDF
HF62F/012-1HF
Click to enlarge
Price:
2.00 €
VAT:
0.48 €
Final price with tax:
2.48 €
Amount:
Usually shipped within 2-3 business days.
Usually shipped within 2-3 business days.
Specifications
Manufacturer
HONGFA RELAY
Type of relay
electromagnetic
Coil voltage
12V DC
Contacts configuration
SPST-NO
Contact current max.
20A
AC contacts rating @R
16A / 250V AC
DC contacts rating @R
16A / 30V DC
Relay variant
miniature
Mounting
PCB
Coil resistance
270Ω
Coil voltage min.
9.6V DC
Coil voltage max.
15.6V DC
Operate time
20ms
Body dimensions
29x12.6x24.2mm
Release time
10ms
Coil power consumption
540mW
Contact resistance
50mΩ
Contact material
AgSnO
2
Operating temperature
-40...85°C
Switched voltage
max. 30V DC, max. 277V AC

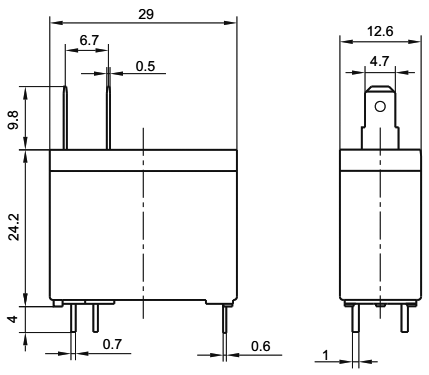

Dimensions
VIEW

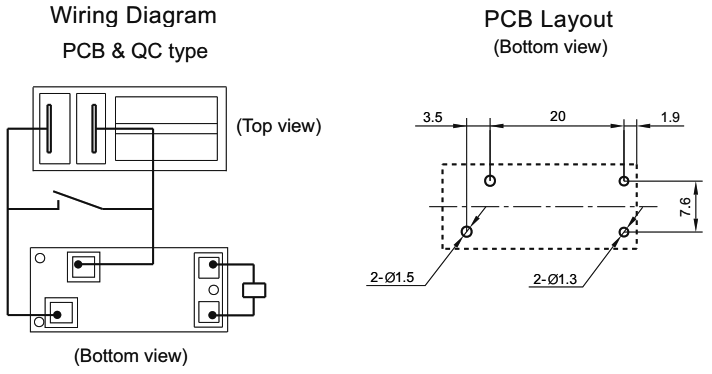

Output configuration
VIEW
Availability:
With order
