Relays PCB - Relay electromagnetic, SPDT, Ucoil 110VAC, 10A/250VAC, 10A/30VDC

Prod code: 31622
G2R-1-110AC PDF

G2R-1-110AC
Price:  4.89 €
VAT:  1.17 €
Final price with tax:  6.06 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 110V AC
AC contacts rating 10 A / 250 VAC
DC contacts rating 10 A / 30 VDC
Contact current max. 10A
Switched voltage max 125V DC, max 380V AC
Relay variant miniature
Mounting PCB
Coil resistance 4.6kΩ
Operate time 15ms
Body dimensions 29 x 13 x 25.5mm
Release time 10ms
Operating temperature 40...70°C
Relay series G2R
Contact resistance 30mΩ
Terminal pitch 3.5mm
Coil current 11mA
Enclosure description standard seal
Leads for PCB
Associated items PODST-1

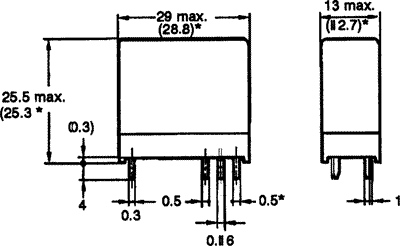

Dimensions  VIEW

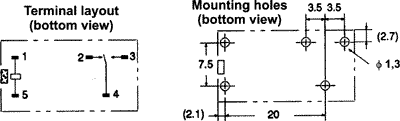

Output configuration  VIEW

Availability: On stock
