Relays PCB - Relay electromagnetic, DPDT, Ucoil 5VDC, 2A, 0.5A/125VAC, SMT

Prod code: 40573

V23079D1001B301
Price:  2.82 €
VAT:  0.68 €
Final price with tax:  3.49 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 5V DC
Contact current max. 2A
AC contacts rating @R(at resistive load) 0.5A / 125V AC
DC contacts rating @R(at resistive load) 2A / 30V DC
Switched voltage max. 220V DC, max. 250V AC
Relay variant miniature, monostable
Mounting SMT
Coil resistance 178Ù
Coil voltage min. 3.75V DC
Coil voltage max. 10.9V DC
Body dimensions 14.5x7.2x9.8mm
Coil power consumption 140mW
Operating temperature -40...85°C
Relay series P2
Terminal pitch 2.54mm
Design single coil

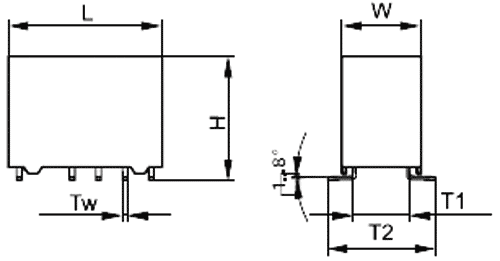

Dimensions  VIEW

Availability: On stock
