Specifications |
| Manufacturer |
TE Connectivity |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPST-NO |
| Rated coil voltage |
12V DC |
| Contact current max. |
25A |
| Relay variant |
power |
| Relay series |
PCFN |
| Operating temperature |
-25...85°C |
| Mounting |
PCB |
| Body dimensions |
16x26.5x30.4mm |
| Switched voltage |
max. 277V AC, max. 300V DC |
| Coil resistance |
96Ω |
| AC contacts rating @R |
25A / 277V AC |
| Contact material |
AgSnO2 |
| DC contacts rating @R |
25A / 24V DC |
| Coil power consumption |
1.5mW |
| Operate time |
20ms |
| Release time |
10ms |
| IP rating |
IP67 |
| Application |
photovoltaics |
| Switching capacity |
7.2kVA |
| Height |
26.5mm |

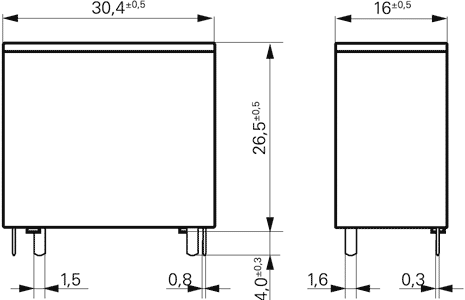

| Dimensions |
 VIEW |
| |
|
