Relays PCB - Relay electromagnetic, DPDT, Ucoil 24VDC, 5A/250VAC, 5A/30VDC
Prod code:
37797
PDF
G2R-2-SD-24DC
Click to enlarge
Price:
6.82 €
VAT:
1.64 €
Final price with tax:
8.45 €
Amount:
Usually shipped within 1 business day.
Usually shipped within 1 business day.
Specifications
Manufacturer
OMRON
Type of relay
electromagnetic
Contacts configuration
DPDT
Rated coil voltage
24V DC
AC contacts rating @R
5A / 250V AC
DC contacts rating @R
5A / 30V DC
Contact current max.
5A
Switched voltage
max. 125V DC,
max. 380V AC
Relay variant
industrial,
miniature
Mounting
socket
Relay series
G2R-2-S
Operating temperature
-40...70°C
Body dimensions
29x13x35.5mm
Coil resistance
1.1kΩ
Operate time
15ms
Release time
20ms
Coil current
21.8mA
Relay features
protection diode
Contact resistance
30mΩ
Coil power consumption
530mW
Switching capacity
150W,
1250VA
Optional equipment
overvoltage damping diode
Terminal pitch
5mm
Related items
P2R-08A,
P2R-08P,
P2R-087P,
P2RF-08,
P2RF-08-E

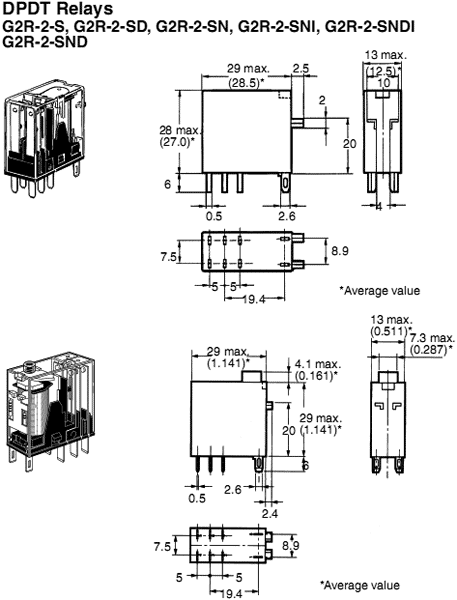

Dimensions
VIEW

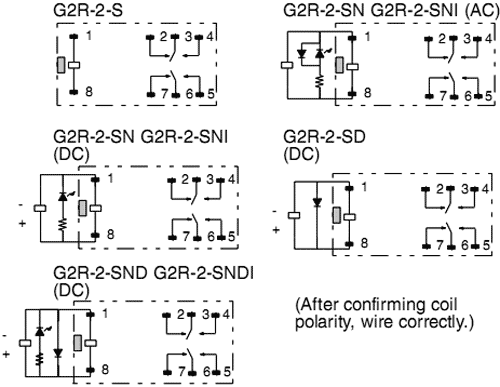

Output configuration
VIEW
Gross weight
20.5 g
Availability:
On stock
