Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 25A/250VAC, 25A

Prod code: 37027
PCF-112D2M.000 PDF

PCF-112D2M.000
Price:  4.15 €
VAT:  0.99 €
Final price with tax:  5.14 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 25A / 250V AC
DC contacts rating @R 25A / 24V DC
Contact current max. 25A
Switched voltage max. 30V DC,   max. 277V AC
Relay variant miniature
Mounting connectors,   PCB
Coil resistance 160Ω
Coil voltage min. 9V DC
Operate time 20ms
Body dimensions 30.4x16x36.5mm
Release time 10ms
Coil power consumption 900mW
Operating temperature -30...55°C
Weight 28g
Relay series PCF
Contact material AgSnO2

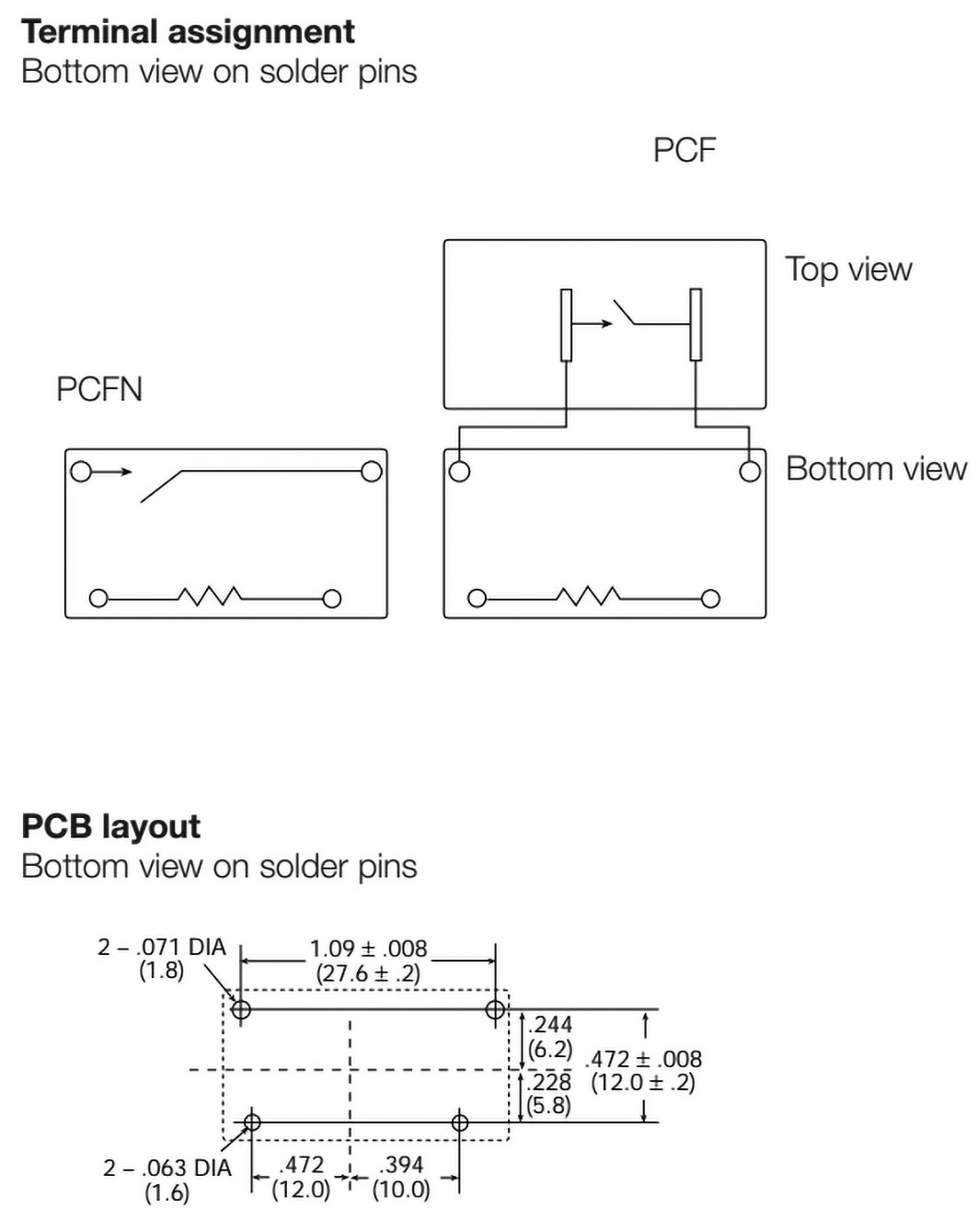

Output configuration  VIEW

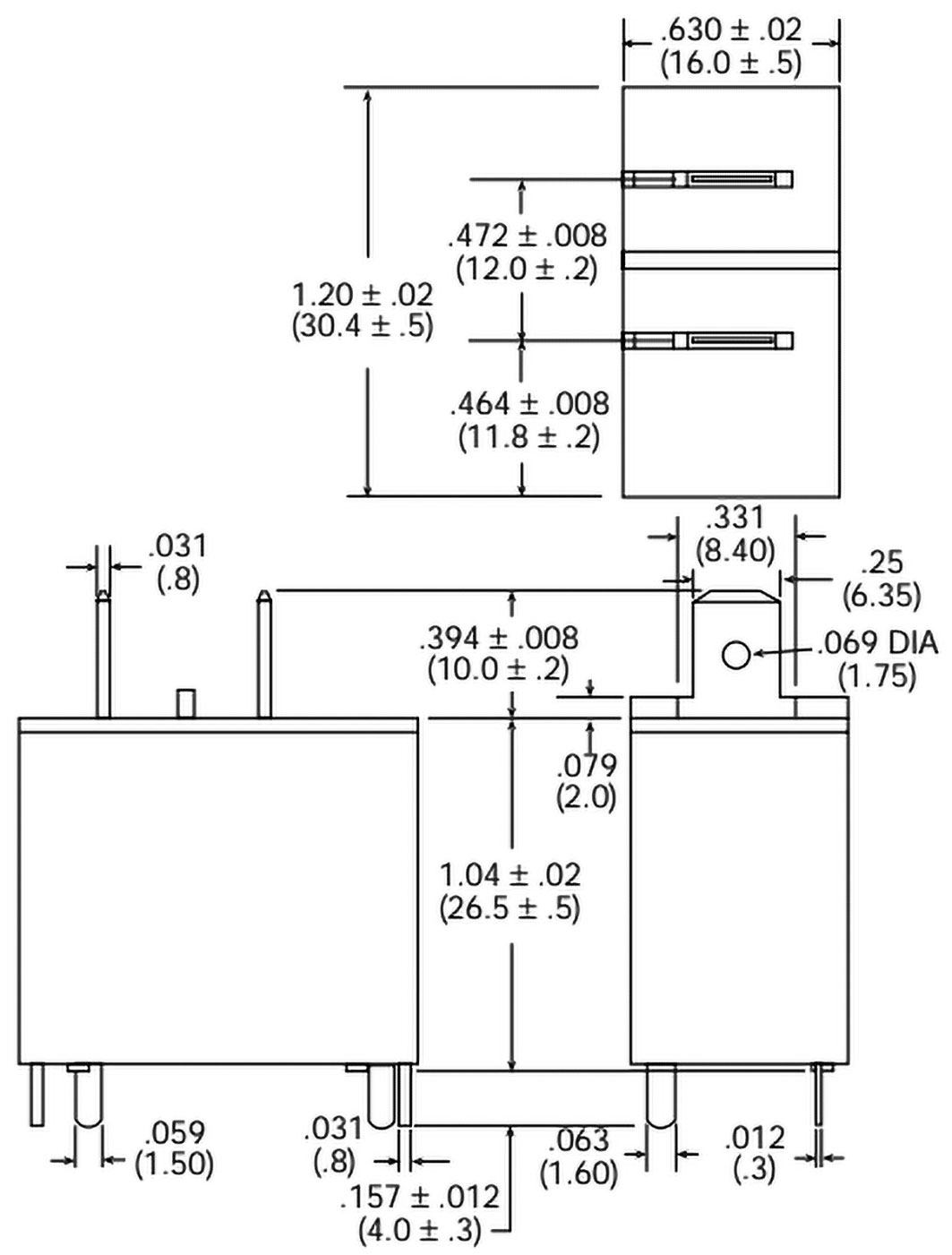

Dimensions  VIEW
Gross weight 29.005 g

Availability: On stock
