Specifications |
| Manufacturer |
RELPOL |
| Relay type |
electromagnetic |
| Contacts configuration |
SPDT |
| Rated coil voltage |
12V DC |
| AC contacts rating |
6 A / 250 VAC |
| DC contacts rating |
6 A / 24 VDC |
| Contact current max. |
6A |
| Switched voltage |
max 24V DC, max 400V AC |
| Relay variant |
interface |
| Mounting |
PCB, vertical, socket |
| Coil resistance |
848Ω |
| Coil voltage min. |
9V DC |
| Coil voltage max. |
18V DC |
| Operate time |
8ms |
| Body dimensions |
28 x 5 x 15mm |
| Release time |
4ms |
| Coil power consumption |
170mW |
| Sealing |
IP64 |
| Operating temperature |
40...85°C |
| Relay series |
RM699B |
| Contact resistance |
100mΩ |
| Terminal pitch |
5mm |

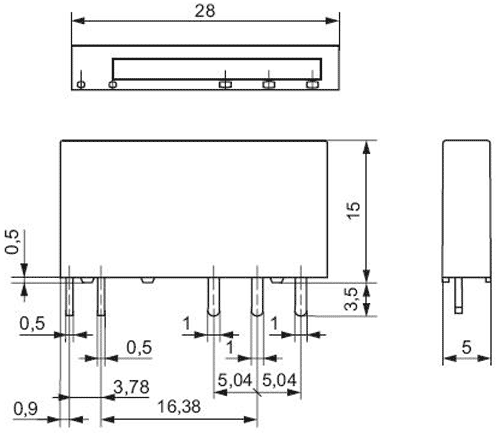

| Dimensions |
 VIEW |

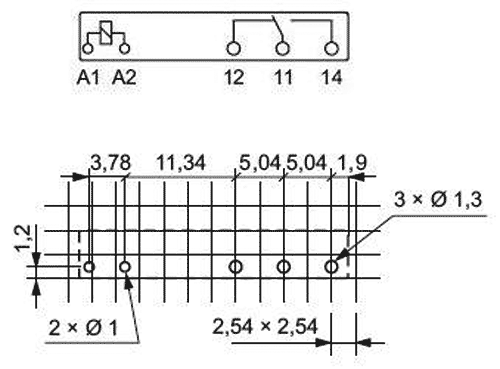

| Leads |
VIEW |
| |
|
