Relay electromagnetic, DPDT, Ucoil 230VAC, 5A, 5A/250VAC, RXG - 9.80 EUR : acdcshop.gr


Ηλεκτρονόμος πλακέτας - Relay electromagnetic, DPDT, Ucoil 230VAC, 5A, 5A/250VAC, RXG	Κωδικός: 43476
PDF	RXG22P7

Κάντε Κλικ για Μεγέθυνση Relay electromagnetic, DPDT, Ucoil 230VAC, 5A, 5A/250VAC, RXG

Τιμή χωρίς ΦΠΑ:	9.80 €
Αξία ΦΠΑ:	2.35 €
Τελική με ΦΠΑ:	12.15 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	SCHNEIDER ELECTRIC
Type of relay	electromagnetic
Contacts configuration	DPDT
Rated coil voltage	230V AC
Contact current max.	5A
AC contacts rating @R	5A / 250V AC
DC contacts rating @R	5A / 30V DC
Manufacturer series	RXG
Relay variant	miniature
Mounting	socket
Body dimensions	29x36.5x13mm
Contact resistance	100mΩ
Contact material	AgSnO₂In₂O₃
Trade name	Zelio Relay
Terminal pitch	5mm
Related items	RGZE1S48M
Coil power consumption	0.82VA
Operating temperature	-40...70°C
Switched voltage	max. 30V DC, max. 250V AC
Optional equipment	LED indicator test button with blocking function

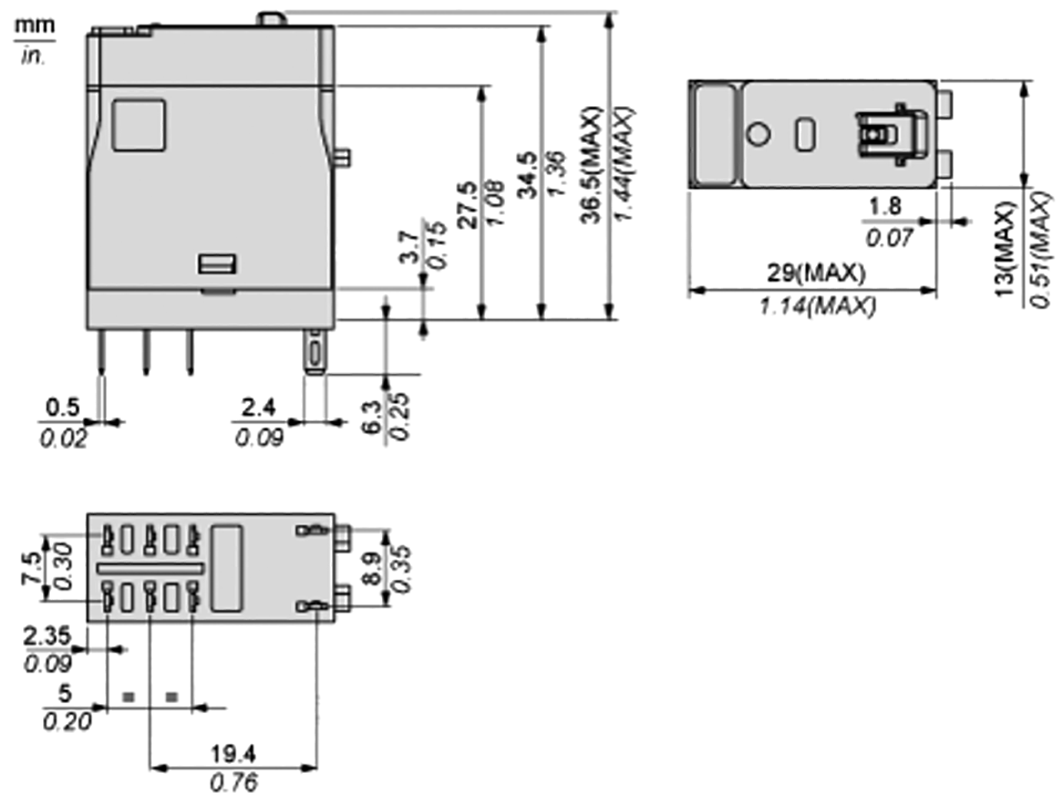

Dimensions	VIEW

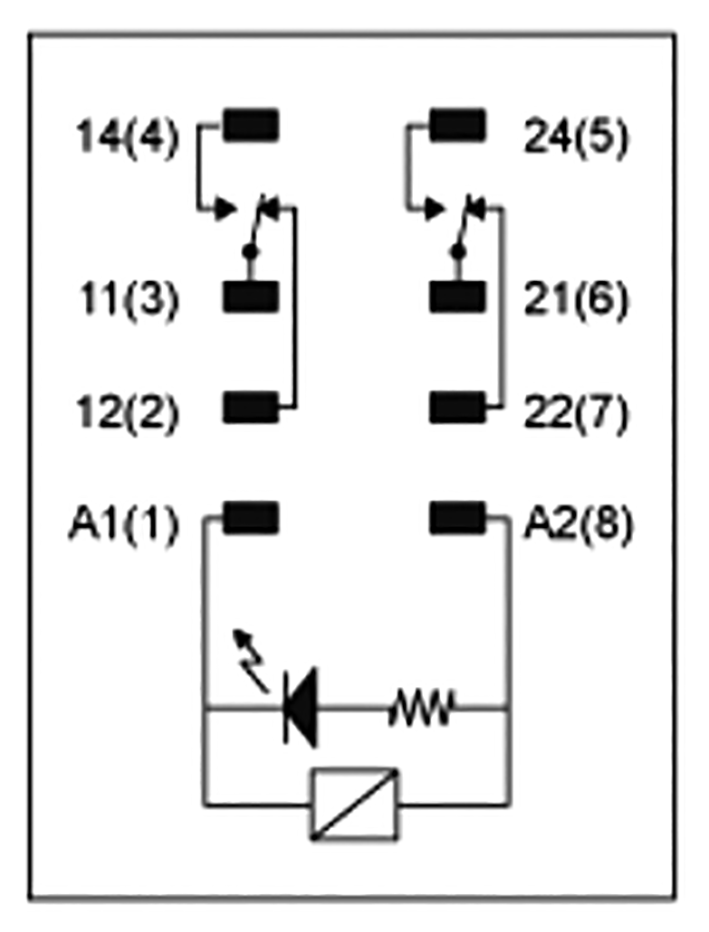

Output configuration	VIEW

Διαθεσιμότητα: Με παραγγελία
