Encoder - Encoding switch, DEC/BCD, Positions 10, 28x7.62x14mm, 100mA

Κωδικός: 28518

Z-48/BCD

Τιμή χωρίς ΦΠΑ:  3.30 €
Αξία ΦΠΑ:  0.79 €
Τελική με ΦΠΑ:  4.09 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Switch type encoding switch
Encoding switch type DEC/BCD
Stable positions number 10-position
Number of positions 10
Operating temperature 20...70°C
Body dimensions 28 x 7.62 x 14mm
Mechanical durability 200000cycles
Electrical life 100000cycles
Operating current max. 100mA
Switched voltage max 50V AC, max 28V DC

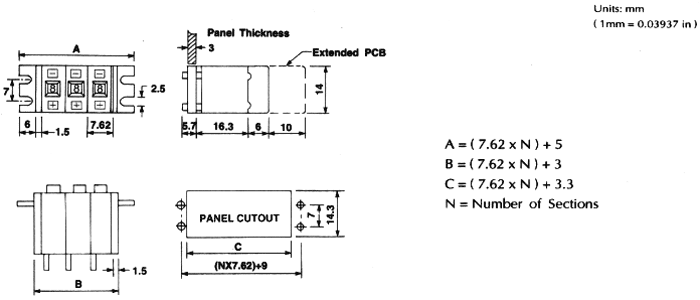

Dimensions  VIEW

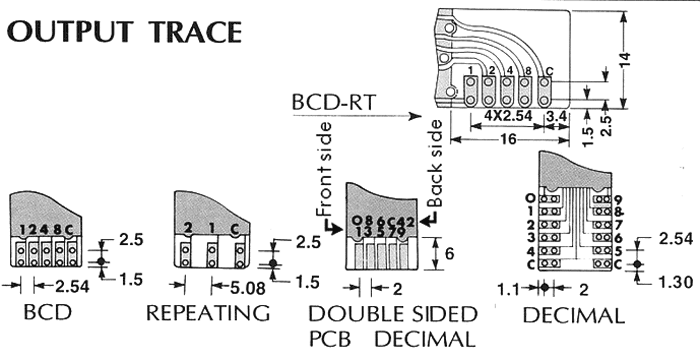

Leads  VIEW

Διαθεσιμότητα: Με παραγγελία
