Ψυγεία IC - Heatsink, series SK29 8.5K/W 37,5mm for TO220

Κωδικός: 7890

SK29-38S

Τιμή χωρίς ΦΠΑ:  1.33 €
Αξία ΦΠΑ:  0.32 €
Τελική με ΦΠΑ:  1.65 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Heatsink type extruded
Application TO220
Length 37.5mm
Width 29mm
Height 12mm
Thermal resistance 8.5K/W
Mounting soldered, screwed

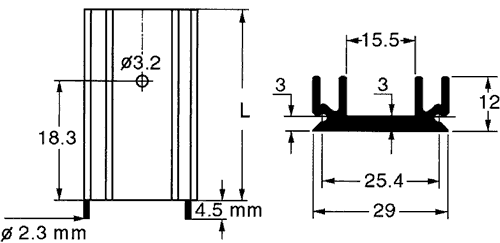

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
