Διακόπτης - Switch piezoelectric, Positions 2, SPST-NO, 0.2A/24VDC, IP68

Κωδικός: 13042

PBAR2 PDF

PBAR2

Τιμή χωρίς ΦΠΑ:  24.65 €
Αξία ΦΠΑ:  5.92 €
Τελική με ΦΠΑ:  30.57 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer APEM
Type of switch piezoelectric
Number of positions 2
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating @R 0.2A / 24V DC
IP rating IP68
Switching method OFF-(ON)
Leads 300mm leads
Operating temperature -20...75°C
Mechanical durability 50000000cycles
Operating Force 5N
Mounting hole diameter Ø22mm
Button shape flat
Body material aluminium
Body colour silver

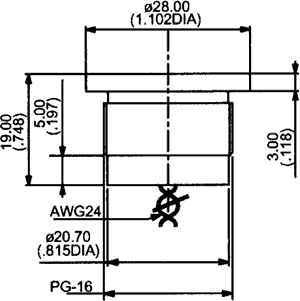

Dimensions  VIEW
Gross weight 22.4 g

Διαθεσιμότητα: Με παραγγελία
