Button - Switch piezoelectric, 1-position, SPST-NO, 0.2A/24VAC, IP68, 0.2A

Prod code: 28850
PS223P10Y01G24T PDF

PS223P10Y01G24T
Price:  17.82 €
VAT:  4.28 €
Final price with tax:  22.09 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ONPOW
Switch type piezoelectric
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating 0.2 A / 24 VAC
DC contacts rating 0.2 A / 24 VDC
Sealing IP68
Switching method OFF-(ON)
Backlight colour green
Leads 30mm leads
Operating temperature 40...75°C
Electrical life 50000000cycles
Switching torque 6N
Illumination LED 24V DC, ring, thin
Body colour silver
Mounting hole diameter ˜22mm
Button shape flat
Body material aluminium
Contact current max. 0.2A
Switched voltage max 24V AC, max 24V DC

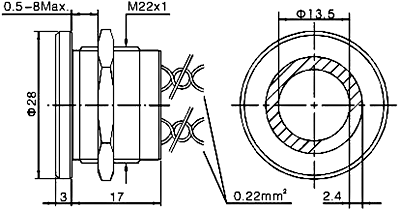

Dimensions  VIEW

Availability: On stock
