Äéáêüðôçò - Switch toggle, Pos 3, SP3T, ON-OFF-(ON), 3A/250VAC, -25....85°C, 20mÙ

Prod code: 37656

TSM113F1 PDF

TSM113F1

Price:  1.18 €
VAT:  0.28 €
Final price with tax:  1.46 €
Amount:
Usually shipped within 1 business day.
Specifications
Type of switch toggle
Number of positions 3
Contacts configuration SP3T
Switching method ON-OFF-(ON)
AC contacts rating @R 3A / 250V AC
Leads for soldering
Operating temperature -25...85°C
Kind of toggle flat
Mounting hole diameter Ø6mm
Knob height 12mm
Max. contact resistance: 20mΩ
Body dimensions 13.2x7.9x9.5mm
Electrical life 20000 cycles
Actuator material metal
Body colour black
Soldering temperature 260°C / 4 s
Stable positions number 2
Panel cutout  VIEW

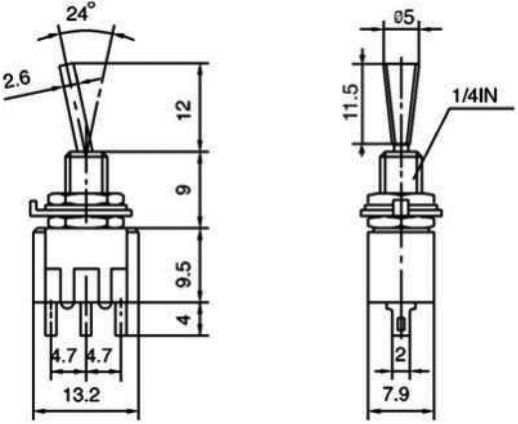

Dimensions  VIEW
Gross weight 5.37 g

Availability: On stock
