Διακόπτης - Switch vandal resistant, Pos 2, SPST-NO, 2A/36VDC, IP65, OFF-(ON)

Prod code: 41173

GQ16F-10.pdf PDF

V16-10-N

Price:  3.45 €
VAT:  0.83 €
Final price with tax:  4.28 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ONPOW
Type of switch vandal resistant
Number of positions 2
Contacts configuration SPST-NO
DC contacts rating @R(at resistive load)at resistive load 2A / 36V DC
IP rating IP65
Switching method(the position in bracket indicates momentary position.)The position in bracket indicates momentary position. OFF-(ON)
Illumination none
Leads screw terminals
Operating temperature -20...55°C
Electrical life 200000 cycles
Max. contact resistance: 50mΩ
Operating Force 4N
Mechanical durability 1000000 cycles
Button shape flat
Mounting hole diameter Ø16mm
Body colour silver
Body material nickel plated brass
Ring shape rounded
Test voltage 2kV
Contact material silver alloy
Stable positions number 1

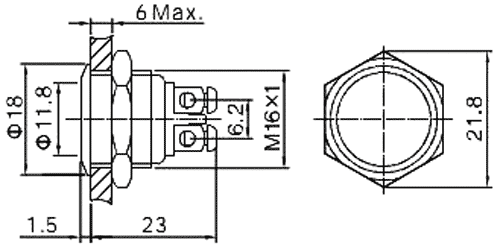

Dimensions  VIEW

Availability: On stock
