Διακόπτης - Switch emergency stop, 22mm, Stabl.pos 2, NC x2, red, none, IP65

Prod code: 41316

EAO_MC_84_Main-Catalogue_EN.pdf PDF

84-5140.0020

Price:  34.29 €
VAT:  8.23 €
Final price with tax:  42.52 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer EAO
Type of switch emergency stop
Switch standard 22mm
Contacts configuration NC x2
Actuator colour red
Illumination none
AC contacts rating @R(at resistive load)at resistive load 5A / 250V AC
DC contacts rating @R(at resistive load)at resistive load 5A / 24V DC
IP rating IP65
Button shape mushroom
Switches features return by rotating
Number of positions 2
Mounting hole diameter Ø22.5mm
Operating temperature -25...55°C
Button marking arrows
Related items 73-00001.1, 73-00001.2, 73-00002.1, 73-00002.2, 84-902B, 84-909, 84-910, 84-920
Face dimensions Ø32mm
Leads cables
Manufacturer series 84
Stable positions number 2
Cable length 0.3m

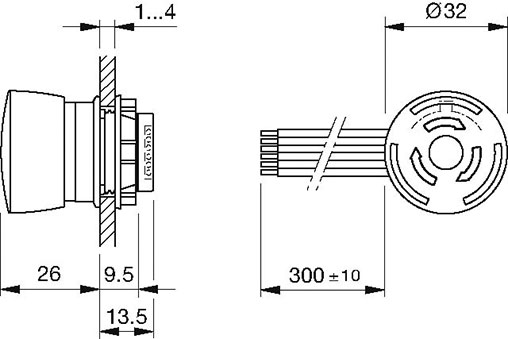

Dimensions  VIEW

Availability: With order
