Specifications |
| Manufacturer |
TE Connectivity |
| Type of relay |
electromagnetic |
| Contacts configuration |
SPDT |
| Rated coil voltage |
24V DC |
| Contact current max. |
6A |
| AC contacts rating @R |
6A / 250V AC |
| DC contacts rating @R |
6A / 30V DC |
| Relay series |
SNR |
| Switched voltage |
max. 300V DC, max. 440V AC |
| Relay variant |
interface |
| Mounting |
PCB |
| Coil resistance |
3.39kΩ |
| Operate time |
5ms |
| Body dimensions |
28x5x15mm |
| Release time |
2.5ms |
| Coil power consumption |
170mW |
| IP rating |
IP67 |
| Mechanical durability |
100000000 cycles |
| Operating temperature |
-40...85°C |
| Contact material |
AgNi |
| Terminal pitch |
5mm |
| Coil current |
7.1mA |

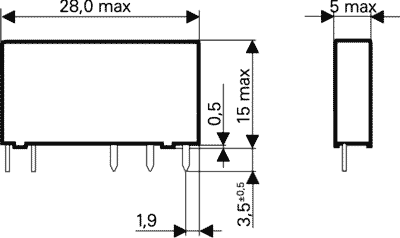

| Dimensions |
 VIEW |
| |
|
