Τροφοδοτικό LED - Power supply unit for Led-s 12V 3A 36W	Κωδικός: 204
PDF	LPV-35-12

Κάντε Κλικ για Μεγέθυνση Power supply unit for Led-s 12V 3A 36W

Τιμή χωρίς ΦΠΑ:	15.54 €
Αξία ΦΠΑ:	3.73 €
Τελική με ΦΠΑ:	19.27 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Application	for LED diodes
Kind of power supply	volatage source
Power	36W
Output voltage	12V DC
Output current	3A
Supply voltage	90...264V AC, 127...370V DC
Sealing	IP67
Body dimensions	40 x 148 x 30mm
Power supply/converter features	rated parameters obtained at full load
Protection	overload, voltage growth, short-circuit
Weight	340g
Operating temperature	30...75°C
Electrical connection	600mm wires
Number of outputs	1
Series	LPV-35
Efficiency	84%

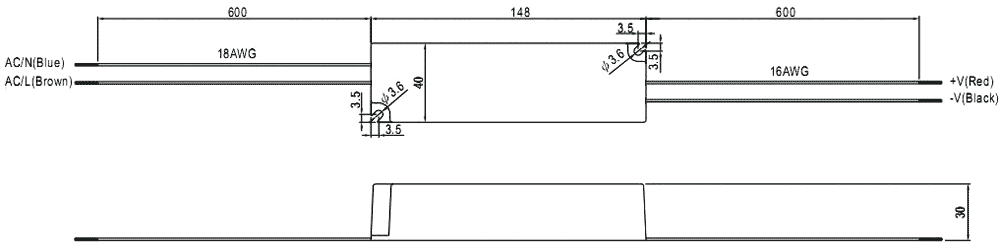

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
