Ελεγχος Θερμοκρασίας - Module regulator, temperature, SPST-NO, OUT 2 SPST-NO, on panel	Κωδικός: 37302
PDF	K49P-HCRR

Κάντε Κλικ για Μεγέθυνση Module regulator, temperature, SPST-NO, OUT 2 SPST-NO, on panel

Τιμή χωρίς ΦΠΑ:	247.92 €
Αξία ΦΠΑ:	59.50 €
Τελική με ΦΠΑ:	307.42 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	ASCON TECNOLOGIC
Type of module	regulator
Kind of temperature sensor	Pt100, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T
Controlled parameter	temperature
Kind of output 1	SPST-NO
Kind of output 2	SPST-NO
Regulation for output 1	2PID, AUTOTUNING, ON-OFF, ON-OFF with hysteresis, PID, PROGRAM
Regulation for output 2	ON-OFF, ON-OFF with hysteresis
Mounting	on panel
Output 1 electrical parameters	250V AC / 8A
Output 2 electrical parameters	250V AC / 8A
Controlled parameter range	0...999,9°C
Operating temperature	-25...60°C
Supply voltage	100...240V AC
The programming method	keypad
Mounting hole diameter	45x45mm
Kind of display used	LED x2
Additional functions	PROGRAMMER

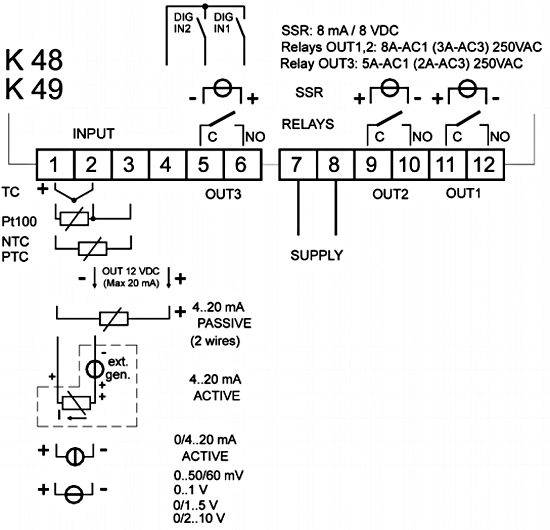

Output configuration	VIEW

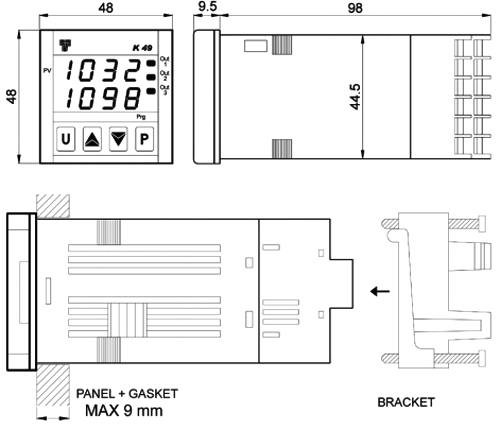

Dimensions	VIEW
Gross weight	181.5 g

Διαθεσιμότητα: Με παραγγελία
