--- - Module Peltier, 15.4V, 8.5A, 40x40x3.5mm, 85W, Mat Al2O3, 16AWG

Κωδικός: 39260

PM-40X40-85 PDF

PM-40X40-85

Τιμή χωρίς ΦΠΑ:  15.93 €
Αξία ΦΠΑ:  3.82 €
Τελική με ΦΠΑ:  19.76 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer STONECOLD
Type of module Peltier
Max. operating voltage 15.4V
Max. operating current 8.5A
Body dimensions 40x40x3.5mm
Max. heat pump capacity 85W
Material Al2O3
Cable length 150mm
Contact material BiSn
Max. temperature difference 68°C
Resistance 1.5Ω
Wire insulation material teflon
Operating temperature max. 138°C
Wire size 16AWG

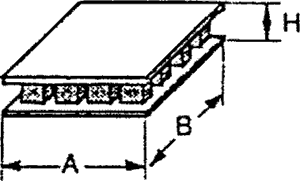

Dimensions  VIEW
Gross weight 23.99 g

Διαθεσιμότητα: Με παραγγελία
