Ψυγεία IC - Heatsink black finished type H 10,4K/W 38mm TO220

Κωδικός: 7803

HS-135A-38 PDF

HS-135A-38

Τιμή χωρίς ΦΠΑ:  0.82 €
Αξία ΦΠΑ:  0.20 €
Τελική με ΦΠΑ:  1.02 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer STONECOLD
Heatsink type extruded
Heatsink shape H
Application TO220
Colour black
Length 38mm
Width 34.5mm
Height 12.5mm
Thermal resistance 10.4K/W
Material aluminium
Material finishing anodized
Mounting soldered, screwed

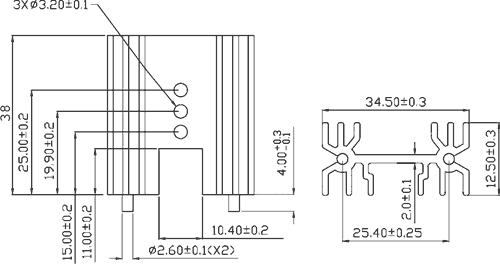

Dimensions  VIEW

Διαθεσιμότητα: Αμεσα
