Solid state relay - Relay solid state, Ucntrl 3.5÷32VDC, 20A, 1÷100VDC, Series 1-DC

Κωδικός: 37060

D1D20 PDF

D1D20

Τιμή χωρίς ΦΠΑ:  73.96 €
Αξία ΦΠΑ:  17.75 €
Τελική με ΦΠΑ:  91.71 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer CRYDOM
Type of relay solid state
Max. operating current 20A
Switched voltage 1...100V DC
Relay variant 1-phase
Relay series 1-DC
Relay features maximal load current with use of suitable heatsink
Body dimensions 44.5x57.3x22.6mm
Operating temperature -40...100°C
Switching method instantaneous switching
Control voltage 3.5...32V DC

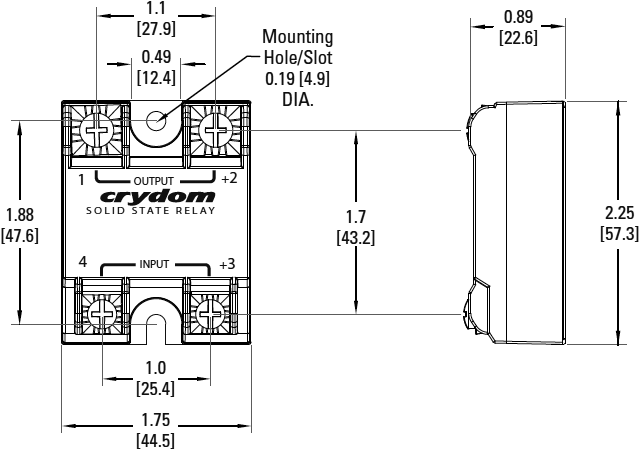

Dimensions  VIEW
Gross weight 75.75 g

Διαθεσιμότητα: Με παραγγελία
