Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 16A/250VAC, 16A/30VDC

Prod code: 33897
G2R-1-E-12DC PDF

G2R-1-E-12DC
Price:  3.79 €
VAT:  0.91 €
Final price with tax:  4.70 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 16A / 250V AC
DC contacts rating @R 16A / 30V DC
Contact current max. 16A
Switched voltage max. 125V DC,
Relay variant miniature,
Mounting PCB
Coil resistance 275Ω
Operate time 15ms
Body dimensions 29x13x25.5mm
Release time 5ms
Operating temperature -40...70°C
Relay series G2R
Contact resistance 30mΩ
Terminal pitch 5mm
Coil current 43.6mA
Enclosure description standard seal
Related items PODST-3
Leads for PCB

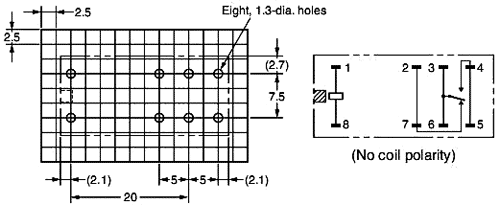

Output configuration  VIEW

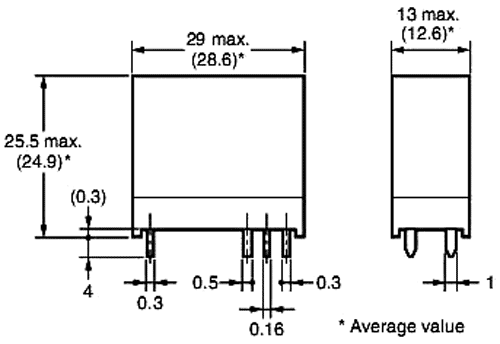

Dimensions  VIEW
Gross weight 19.2 g

Availability: On stock
