Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 5VDC, 6A/250VAC, 6A/30VDC

Prod code: 36941
HF41F/005-HS PDF

HF41F/005-HS
Price:  2.55 €
VAT:  0.61 €
Final price with tax:  3.17 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 5V DC
AC contacts rating @R 6A / 250V AC
DC contacts rating @R 6A / 30V DC
Contact current max. 6A
Switched voltage max. 125V DC,   max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 147Ω
Coil voltage min. 3.75V DC
Coil voltage max. 7.5V DC
Operate time 8ms
Body dimensions 28x5x15mm
Release time 4ms
Coil power consumption 170mW
Operating temperature -40...85°C
Relay series HF41F
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 5.04mm

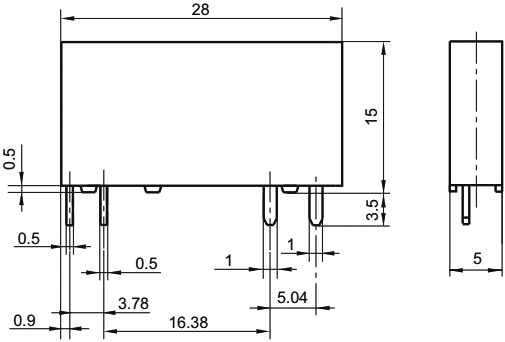

Dimensions  VIEW

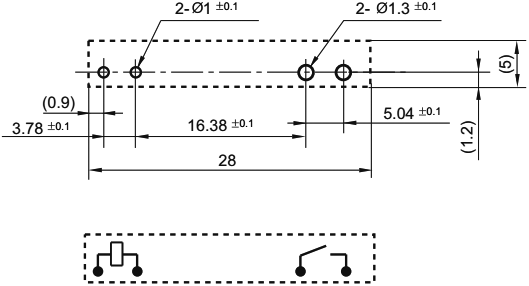

Output configuration  VIEW
Gross weight 4.907 g

Availability: With order
