Solid state relay - Relay solid state, Ucntrl 4÷6VDC, 2A, 75÷264VAC, Variant 1-phase

Prod code: 36319
AQG22205 PDF

AQG22205
Price:  4.83 €
VAT:  1.16 €
Final price with tax:  5.99 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer PANASONIC
Type of relay solid state
Max. operating current 2A
Switched voltage 75...264V AC
Relay variant 1-phase
Mounting PCB,   THT
Operating temperature -30...80°C
Body dimensions 24.5x20.5x4.5mm
Relay series AQ-G
Switching method instantaneous switching
Control voltage 4...6V DC

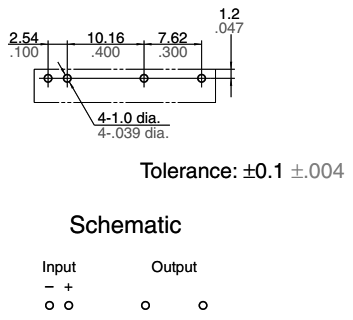

Dimensions  VIEW
Output configuration  VIEW
Gross weight 4.19 g

Availability: On stock
