Ανεμιστήρας AC - Fan 80x25 230VAC; vapo 68M3/H 32dBA

Κωδικός: 8974

MA2082HVL PDF

MA2082HVL

Τιμή χωρίς ΦΠΑ:  14.21 €
Αξία ΦΠΑ:  3.41 €
Τελική με ΦΠΑ:  17.62 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer SUNON
Fan type AC
Fan kind axial
Supply voltage 230V AC
Fan dimensions 80x80x25mm
Power consumption 3.8W
Rated current 100mA
Fans efficiency 67.1 (±5%)m3/h
Noise level 32.8dBA
Bearing type Vapo
Rotational rate/speed 3200rpm
Weight 260g
Current and power consumption tolerance 15%
Frequency 50Hz
Min. insulation resistance 500MΩ
Fan material thermoplastic
Enclosure material thermoplastic
Insulation class B
Operating temperature 10...70°C
Leads 2 leads
Static pressure 3.55mm H2O
Flammability rating UL94V-0
Cable length 330mm
Wire size 24AWG
Standard equipment suppression capacitor

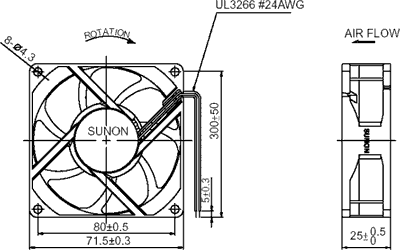

Dimensions  VIEW

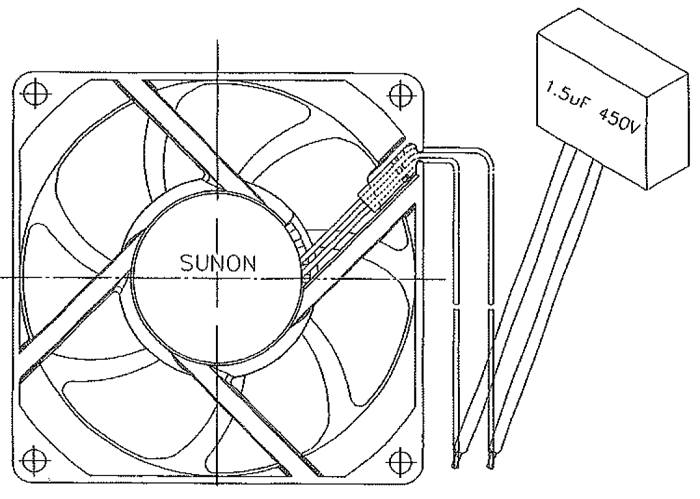

Assembly method  VIEW

Διαθεσιμότητα: Αμεσα
